3A Clamp End 卫生级蝶阀
卫生级蝶阀 - 球阀
| select | |||||||

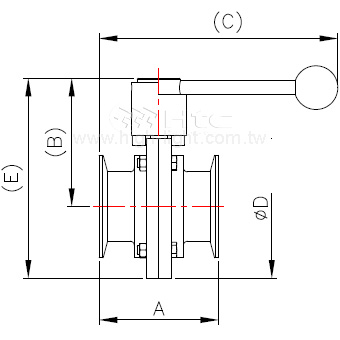

| Model No. | SF25BFE66-316L | SF40BFE66-316L | SF50BFE70-316L | SF63BFE70-316L | SF80BFE76-316L | SF100BFE76-316L | SF160BFE140-316L |
| Parts No. | 3202112112141 | 3202132112141 | 3202142112141 | 3202152112141 | 3202162112141 | 3202182112141 | 3202202112141 |
| A | 66 | 66 | 70 | 70 | 76 | 76 | 140 |
| B | 80 | 83.3 | 93.3 | 96.6 | 103.8 | 120.6 | 158 |
| C | 178 | 178 | 180 | 180 | 183 | 183 | 215 |
| D | 79 | 85 | 105 | 112 | 125 | 157 | 216.5 |
| E | 120 | 126 | 146 | 153 | 166 | 199 | 266 |
| Size | 1.0" | 1.5" | 2.0" | 2.5" | 3.0" | 4.0" | 6.0" |
| Select | Model No. | Parts No. | A | B | C | D | E | Size |
| SF25BFE66-316L | 3202112112141 | 66 | 80 | 178 | 79 | 120 | 1.0" | |
| SF40BFE66-316L | 3202132112141 | 66 | 83.3 | 178 | 85 | 126 | 1.5" | |
| SF50BFE70-316L | 3202142112141 | 70 | 93.3 | 180 | 105 | 146 | 2.0" | |
| SF63BFE70-316L | 3202152112141 | 70 | 96.6 | 180 | 112 | 153 | 2.5" | |
| SF80BFE76-316L | 3202162112141 | 76 | 103.8 | 183 | 125 | 166 | 3.0" | |
| SF100BFE76-316L | 3202182112141 | 76 | 120.6 | 183 | 157 | 199 | 4.0" | |
| SF160BFE140-316L | 3202202112141 | 140 | 158 | 215 | 216.5 | 266 | 6.0" |
卫生级蝶阀规格
- 阀门主体大小: 1/2” to 6”
- 法兰 : Clamp End (3A Inch)
- 主体材质 : 316 不锈钢
- 密封材料 : EPDM
