卫生级法兰式垫圈 13FG
垫圈
| select | ||||||||||||||||||
| Model No. | 25FGFV | 40FGFV | 50FGFV | 63FGFV | 80FGFV | 100FGFV | 160FGFV | 250FGFV | 320FGFV | 25FGFS | 40FGFS | 50FGFS | 63FGFS | 80FGFS | 100FGFS | 160FGFS | 250FGFS | 320FGFS |
| Parts No. | 215206C12 | 215208C12 | 215209C12 | 215210C12 | 215211C12 | 215212C12 | 215215C12 | 215217C12 | 215219C12 | 215206S13 | 215208S13 | 215209S13 | 215210S13 | 215211S13 | 215212S13 | 215215S13 | 215217S13 | 215219S13 |
| Material | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Silicon | Silicon | Silicon | Silicon | Silicon | Silicon | Silicon | Silicon | Silicon |

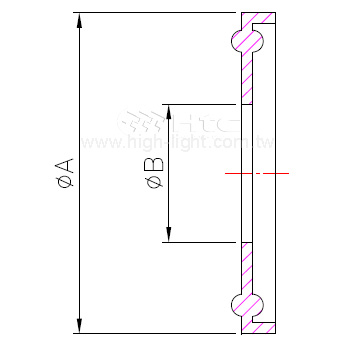

| A | 52.7 | 52.7 | 66.2 | 79.7 | 93.2 | 121.2 | 169.1 | 270.7 | 321.5 | 52.7 | 52.7 | 66.2 | 79.7 | 93.2 | 121.2 | 169.1 | 270.7 | 321.5 |
| B | 22.8 | 35.8 | 48.8 | 60.5 | 73.1 | 97.8 | 148 | 249 | 300 | 22.8 | 35.8 | 48.8 | 60.5 | 73.1 | 97.8 | 148 | 249 | 300 |
| Size | 1" | 1.5" | 2.0" | 2.5" | 3.0" | 4.0" | 6.0" | 10" | 12" | 1" | 1.5" | 2.0" | 2.5" | 3.0" | 4" | 6.0" | 10" | 12" |
| Select | Model No. | Parts No. | Material | A | B | Size |
| 25FGFV | 215206C12 | Viton | 52.7 | 22.8 | 1" | |
| 40FGFV | 215208C12 | Viton | 52.7 | 35.8 | 1.5" | |
| 50FGFV | 215209C12 | Viton | 66.2 | 48.8 | 2.0" | |
| 63FGFV | 215210C12 | Viton | 79.7 | 60.5 | 2.5" | |
| 80FGFV | 215211C12 | Viton | 93.2 | 73.1 | 3.0" | |
| 100FGFV | 215212C12 | Viton | 121.2 | 97.8 | 4.0" | |
| 160FGFV | 215215C12 | Viton | 169.1 | 148 | 6.0" | |
| 250FGFV | 215217C12 | Viton | 270.7 | 249 | 10" | |
| 320FGFV | 215219C12 | Viton | 321.5 | 300 | 12" | |
| 25FGFS | 215206S13 | Silicon | 52.7 | 22.8 | 1" | |
| 40FGFS | 215208S13 | Silicon | 52.7 | 35.8 | 1.5" | |
| 50FGFS | 215209S13 | Silicon | 66.2 | 48.8 | 2.0" | |
| 63FGFS | 215210S13 | Silicon | 79.7 | 60.5 | 2.5" | |
| 80FGFS | 215211S13 | Silicon | 93.2 | 73.1 | 3.0" | |
| 100FGFS | 215212S13 | Silicon | 121.2 | 97.8 | 4" | |
| 160FGFS | 215215S13 | Silicon | 169.1 | 148 | 6.0" | |
| 250FGFS | 215217S13 | Silicon | 270.7 | 249 | 10" | |
| 320FGFS | 215219S13 | Silicon | 321.5 | 300 | 12" |
卫生级管件产品最少询购数量为10个, 不便之处, 敬请见谅!!
