13CS 重负荷双爪卫生级卡钳
管束夹
select | |||||||||||||||||||

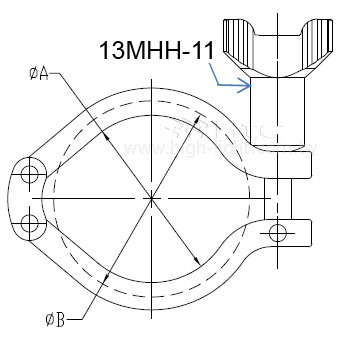

Model No. | 16HDPC | 40HDPC | 50HDPC | 63HDPC | 80HDPC | 100HDPC | 160HDPC | 200HDPC | DN20HDPC | DN40HDPC | DN50HDPC | DN65HDPC | DN80HDPC | DN100HDPC | DN125HDPC | DN150HDPC | DN200HDPC | DN250HDPC | DN300HDPC |
Parts No. | 21060541 | 21060841 | 21060941 | 21061041 | 21061141 | 21061241 | 21061541 | 21061641 | 2106BA41 | 2106BB41 | 2106BC41 | 2106BD41 | 2106BE41 | 2106BF41 | 2106BG41 | 2106BH41 | 2106BJ41 | 2106BK41 | 2106BL41 |
Material | 304S.S. | 304S.S. | 304S.S. | 304S.S. | 304S.S. | 304S.S. | 304S.S. | 304S.S. | 304S.S. | 304S.S. | 304S.S. | 304S.S. | 304S.S. | 304S.S. | 304S.S. | 304S.S. | 304S.S. | 304S.S. | 304S.S. |
A | 20.58 | 41.02 | 54.54 | 68.02 | 81.52 | 109.54 | 157.6 | 207.4 | 27.2 | 44.5 | 57 | 84 | 99 | 112 | 144 | 172 | 222.5 | 257 | 308 |
B | 28.34 | 53.52 | 67.04 | 80.52 | 94.02 | 122.04 | 175.1 | 225.9 | 37 | 54.5 | 68 | 95 | 110 | 123 | 159 | 187 | 237.5 | 272 | 323 |
Size | 3/4" | 1.5" | 2.0" | 2.5" | 3.0" | 4.0" | 6.0" | 8" | DN-10-20 | DN25-40 | DN50 | DN65 | DN80 | DN100 | DN125 | DN150 | DN200 | DN250 | DN300 |
Select | Model No. | Parts No. | Material | A | B | Size |
16HDPC | 21060541 | 304S.S. | 20.58 | 28.34 | 3/4" | |
40HDPC | 21060841 | 304S.S. | 41.02 | 53.52 | 1.5" | |
50HDPC | 21060941 | 304S.S. | 54.54 | 67.04 | 2.0" | |
63HDPC | 21061041 | 304S.S. | 68.02 | 80.52 | 2.5" | |
80HDPC | 21061141 | 304S.S. | 81.52 | 94.02 | 3.0" | |
100HDPC | 21061241 | 304S.S. | 109.54 | 122.04 | 4.0" | |
160HDPC | 21061541 | 304S.S. | 157.6 | 175.1 | 6.0" | |
200HDPC | 21061641 | 304S.S. | 207.4 | 225.9 | 8" | |
DN20HDPC | 2106BA41 | 304S.S. | 27.2 | 37 | DN-10-20 | |
DN40HDPC | 2106BB41 | 304S.S. | 44.5 | 54.5 | DN25-40 | |
DN50HDPC | 2106BC41 | 304S.S. | 57 | 68 | DN50 | |
DN65HDPC | 2106BD41 | 304S.S. | 84 | 95 | DN65 | |
DN80HDPC | 2106BE41 | 304S.S. | 99 | 110 | DN80 | |
DN100HDPC | 2106BF41 | 304S.S. | 112 | 123 | DN100 | |
DN125HDPC | 2106BG41 | 304S.S. | 144 | 159 | DN125 | |
DN150HDPC | 2106BH41 | 304S.S. | 172 | 187 | DN150 | |
DN200HDPC | 2106BJ41 | 304S.S. | 222.5 | 237.5 | DN200 | |
DN250HDPC | 2106BK41 | 304S.S. | 257 | 272 | DN250 | |
DN300HDPC | 2106BL41 | 304S.S. | 308 | 323 | DN300 |
卫生级管件产品最少询购数量为10个, 不便之处, 敬请见谅!!
