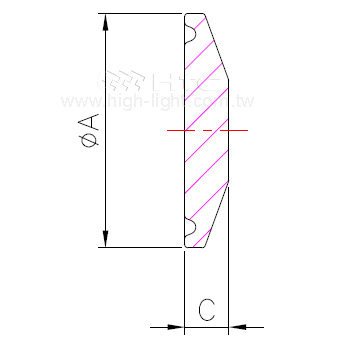

ISO Ferrule 16AMP
封盖盲板
| select | ||||||||||||||
| Model No. | 6-ISO16AMP | 9-ISO16AMP | 10-ISO16AMP | 16-ISO16AMP | 25-ISO16AMP | 32-ISO16AMP | 40-ISO16AMP | 50-ISO16AMP | 63-ISO16AMP | 80-ISO16AMP | 100-ISO16AMP | 125-ISO16AMP | 160-ISO16AMP | 200-ISO16AMP |
| Parts No. | 159226006 | 159200006 | 159201006 | 159202006 | 159203006 | 159223006 | 159205006 | 159206006 | 159207006 | 159208006 | 159209006 | 159210006 | 159211006 | 159213006 |
| Material | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. | 316LS.S. |
| A | 34 | 34 | 34 | 50.5 | 50.5 | 50.5 | 64 | 77.5 | 91 | 106 | 130 | 155 | 183 | 233.5 |
| C | 6.3 | 6.3 | 6.3 | 6.3 | 6.3 | 6.3 | 6.3 | 6.3 | 6.3 | 6.3 | 7.9 | 7.9 | 11.1 | 11.1 |
| Size | DN8(1/4") | DN12(3/8") | DN15(1/2") | DN20(3/4") | DN25(1") | DN32(1.25") | DN40(1.5") | DN50(2.0") | DN65(2.5") | DN80(3.0") | DN100(4.0") | DN125(5.0") | DN150(6.0") | DN200(8.0") |
| Select | Model No. | Parts No. | Material | A | C | Size |
| 6-ISO16AMP | 159226006 | 316LS.S. | 34 | 6.3 | DN8(1/4") | |
| 9-ISO16AMP | 159200006 | 316LS.S. | 34 | 6.3 | DN12(3/8") | |
| 10-ISO16AMP | 159201006 | 316LS.S. | 34 | 6.3 | DN15(1/2") | |
| 16-ISO16AMP | 159202006 | 316LS.S. | 50.5 | 6.3 | DN20(3/4") | |
| 25-ISO16AMP | 159203006 | 316LS.S. | 50.5 | 6.3 | DN25(1") | |
| 32-ISO16AMP | 159223006 | 316LS.S. | 50.5 | 6.3 | DN32(1.25") | |
| 40-ISO16AMP | 159205006 | 316LS.S. | 64 | 6.3 | DN40(1.5") | |
| 50-ISO16AMP | 159206006 | 316LS.S. | 77.5 | 6.3 | DN50(2.0") | |
| 63-ISO16AMP | 159207006 | 316LS.S. | 91 | 6.3 | DN65(2.5") | |
| 80-ISO16AMP | 159208006 | 316LS.S. | 106 | 6.3 | DN80(3.0") | |
| 100-ISO16AMP | 159209006 | 316LS.S. | 130 | 7.9 | DN100(4.0") | |
| 125-ISO16AMP | 159210006 | 316LS.S. | 155 | 7.9 | DN125(5.0") | |
| 160-ISO16AMP | 159211006 | 316LS.S. | 183 | 11.1 | DN150(6.0") | |
| 200-ISO16AMP | 159213006 | 316LS.S. | 233.5 | 11.1 | DN200(8.0") |
卫生级管件产品最少询购数量为10个, 不便之处, 敬请见谅!!
