アングルバルブ | テフロンコーティングアングルバルブ : Htc vacuum

Model No.

AVTCS-KF25-P

AVTCS-KF25-P-N0

AVTCS-KF40-P

AVTCS-KF40-P-N0

AVTCS-KF50-P

AVTCS-KF50-P-N0

Parts No.

300711110250

300711410250

300713110250

300713410250

300714110250

300714410250

A"(mm)

2.03"(51.6)

2.4"(61)

3.4"(86.3)

B"(mm)

6.53"(166.6)

6.45"(165.9)

8.28"(210.2)

8"(203.2)

10.5"(267.6)

10.4"(263.5)

C"(mm)

2.24"(56.8)

2.98"(75.8)

3.48"(88.4)

O.D."(mm)

1"(25.4)

1.5"(38.1)

2"(50.8)

Note

Normally Close (Spring to close air to open)

Normally Open (Spring to open air to close)

Normally Close (Spring to close air to open)

Normally Open (Spring to open air to close)

Normally Close (Spring to close air to open)

Normally Open (Spring to open air to close)

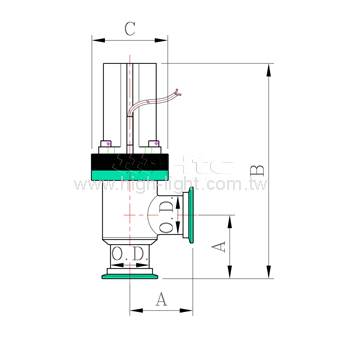

圧空式-テフロンコーティングアングルバルブ

select
Model No.	AVTCS-KF25-P	AVTCS-KF25-P-N0	AVTCS-KF40-P	AVTCS-KF40-P-N0	AVTCS-KF50-P	AVTCS-KF50-P-N0
Parts No.	300711110250	300711410250	300713110250	300713410250	300714110250	300714410250
A"(mm)	2.03"(51.6)	2.03"(51.6)	2.4"(61)	2.4"(61)	3.4"(86.3)	3.4"(86.3)
B"(mm)	6.53"(166.6)	6.45"(165.9)	8.28"(210.2)	8"(203.2)	10.5"(267.6)	10.4"(263.5)
C"(mm)	2.24"(56.8)	2.24"(56.8)	2.98"(75.8)	2.98"(75.8)	3.48"(88.4)	3.48"(88.4)
O.D."(mm)	1"(25.4)	1"(25.4)	1.5"(38.1)	1.5"(38.1)	2"(50.8)	2"(50.8)
Note	Normally Close (Spring to close air to open)	Normally Open (Spring to open air to close)	Normally Close (Spring to close air to open)	Normally Open (Spring to open air to close)	Normally Close (Spring to close air to open)	Normally Open (Spring to open air to close)
