Htc valve control APC software
Htc valve automatic control APC software download service
Here provides automatic pressure control APC software for all Htc APC electric valves, the APC software remains the latest version.
To request or download the APC software information, please contact us. After completing your contact information, we will process it as soon as possible.
Htc’s automatic pressure control software is paired with the APC control system valve, it can easily and quickly be set and monitor the pressure during process, with a friendly operation interface, and multi-language support. The gauge’s pressure feedback and motor control technology can quickly adjust the pressure of the vacuum system’s process, and it completely isolates the vacuum side from the atmosphere side.
It includes a smart learning function, it only needs to be executed once to startup in the new system, these system optimization parameters can be automatically determined. Using this smart learning function, the controller will adapt to different conditions, such as: gas type, or gas flow, to ensure an optimal pressure control at any time.
For the position control mode, the valve plate can be rotated to any position.
Long-distance operation of the valve can be controlled by a host through RS232 and RS485, with logic interface.

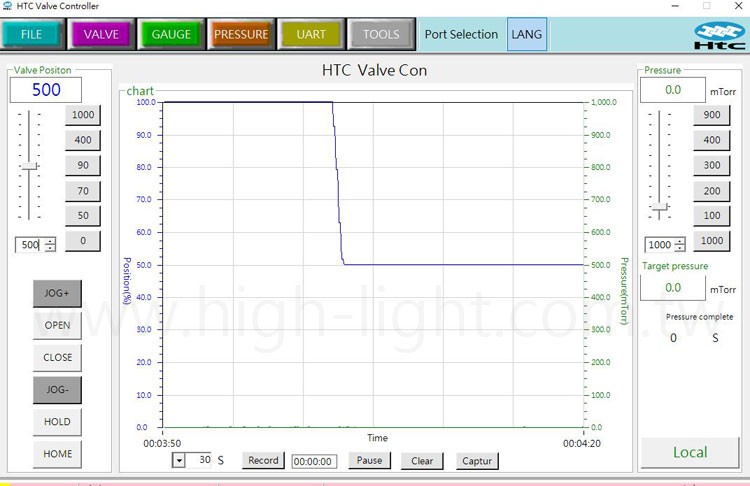

APC software functions
Multi-language support, Control via computer by using the APC software offers convenient functions
- Set control tuning parameter : GAIN
- Pressure and position control mode
- Schedule test Mode=> 1 cycle schedule
- Set valve open/close speed
- Report APC HW/SW version, serial and model number
- Report valve cycles and run hours
- Set tolerance scope of pressure
- Cycles life and pressure control record
- Controller parameter upload and download
- Power failure protection
- Screen Capture
- Stress learning function
