ISO Flange | Manually Operated without Bellows
Large Angle Valve
.jpg)
.jpg)
| select | |||

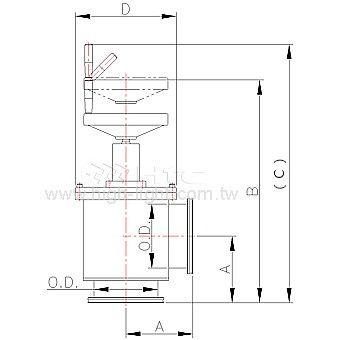

| Model No. | AV-ISO100-M | AV-ISO160-M | AV-ISO200-M |
| Parts No. | 300118040010 | 300120040010 | 300121040010 |
| A | 113.5 | 159 | 209.5 |
| B | 419.3 | 531.4 | 668.1 |
| C | 497.3 | 606.4 | 798.1 |
| D | 151.6 | 240 | 250 |
| O.D. | 101.6 | 152.4 | 203.2 |
| Select | Model No. | Parts No. | A | B | C | D | O.D. |
| AV-ISO100-M | 300118040010 | 113.5 | 419.3 | 497.3 | 151.6 | 101.6 | |
| AV-ISO160-M | 300120040010 | 159 | 531.4 | 606.4 | 240 | 152.4 | |
| AV-ISO200-M | 300121040010 | 209.5 | 668.1 | 798.1 | 250 | 203.2 |
Manually Operated without Bellows
Available Area：U.S.A.
Port Connection：ISO Flange
Note: All dimensions shown on this page are in inch(mm)SolidWorks 2D & 3D model drawings
| Model No. | AV-ISO100-M | AV-ISO160-M | AV-ISO200-M |
| Parts No. | 300118040010 | 300120040010 | 300121040010 |
| Download Type | DWG | STEP | DWG | STEP | DWG | STEP |
Note: Please [Right click] and select [Save link as]. Wait a moment and the archive window appears.
