CF Flange with Bellows / Double Acting
Large Angle Valve
.jpg)
.jpg)
| select | |||||
| Model No. | AVB-CR100-P2 | AVB-CR150-P2 | AVB-CR200-P2 | AVB-CR250-P2 | AVB-CR100-P2-E |
| Parts No. | 300118230016 | 300120230016 | 300121230016 | 300122230016 | 310118230016 |

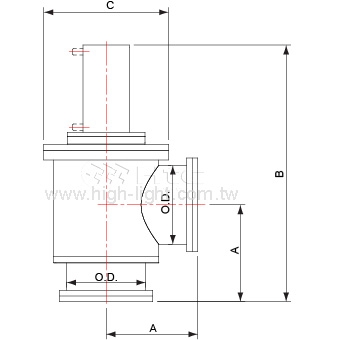

| A | 118 | 165.1 | 215.6 | 266.7 | 135 |
| B | 356.6 | 438.6 | 629.7 | 647.6 | 373.6 |
| C | 151.6 | 240 | 250 | 325 | 151.6 |
| O.D. | 101.6 | 152.4 | 203.2 | 254 | 101.6 |
| Available area | U.S.A | U.S.A | U.S.A | U.S.A | Europe |
| Select | Model No. | Parts No. | A | B | C | O.D. | Available area |
| AVB-CR100-P2 | 300118230016 | 118 | 356.6 | 151.6 | 101.6 | U.S.A | |
| AVB-CR150-P2 | 300120230016 | 165.1 | 438.6 | 240 | 152.4 | U.S.A | |
| AVB-CR200-P2 | 300121230016 | 215.6 | 629.7 | 250 | 203.2 | U.S.A | |
| AVB-CR250-P2 | 300122230016 | 266.7 | 647.6 | 325 | 254 | U.S.A | |
| AVB-CR100-P2-E | 310118230016 | 135 | 373.6 | 151.6 | 101.6 | Europe |
LARGE ANGLE VALVE
Pneumatically Actuated with Bellows
Air to open, air to close
Port Connection：CF Flange
SolidWorks 2D & 3D model drawings
| Model No. | AVB-CR100-P2 | AVB-CR150-P2 | AVB-CR200-P2 | AVB-CR250-P2 | AVB-CR100-P2-E |
| Parts No. | 300118230016 | 300120230016 | 300121230016 | 300122230016 | 310118230016 |
| Download Type | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP |
Note: Please [Right click] and select [Save link as]. Wait a moment and the archive window appears.
