Aluminum vacuum gate valve
HV-gate valve (Aluminum body)
| select | ||
| Model No. | GVBS-AA-ISO250-P | |
| Parts No. | G14H511NA | |
| A | 100 | |
| B | Φ352 | |
| C | 58.5 | |
| D | 261 | |
| E | 86 | |
| F | 176 | |
| G | 455 | |
| H | 422 | |
| L | 877 | |
| Sensor | YES | |
| Select | Model No. | Parts No. | A | B | C | D | E | F | G | H | L | Sensor |
| GVBS-AA-ISO250-P | G14H511NA | 100 | Φ352 | 58.5 | 261 | 86 | 176 | 455 | 422 | 877 | YES |

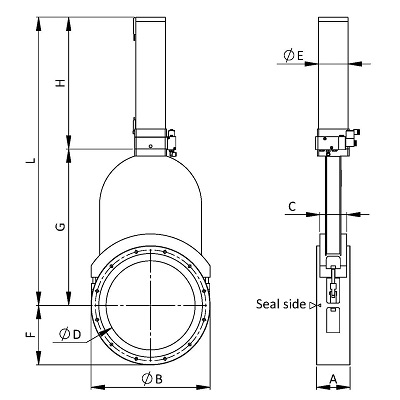

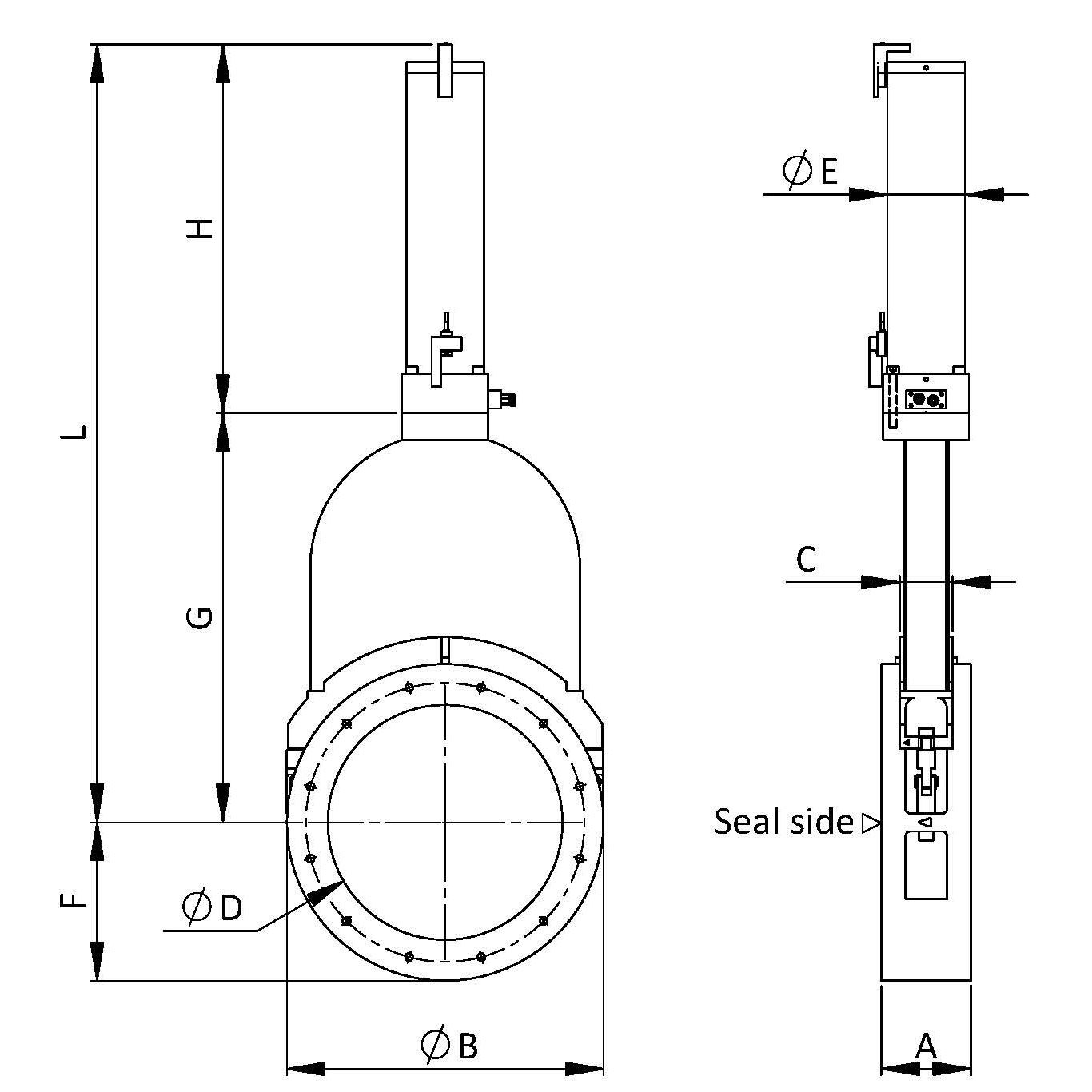

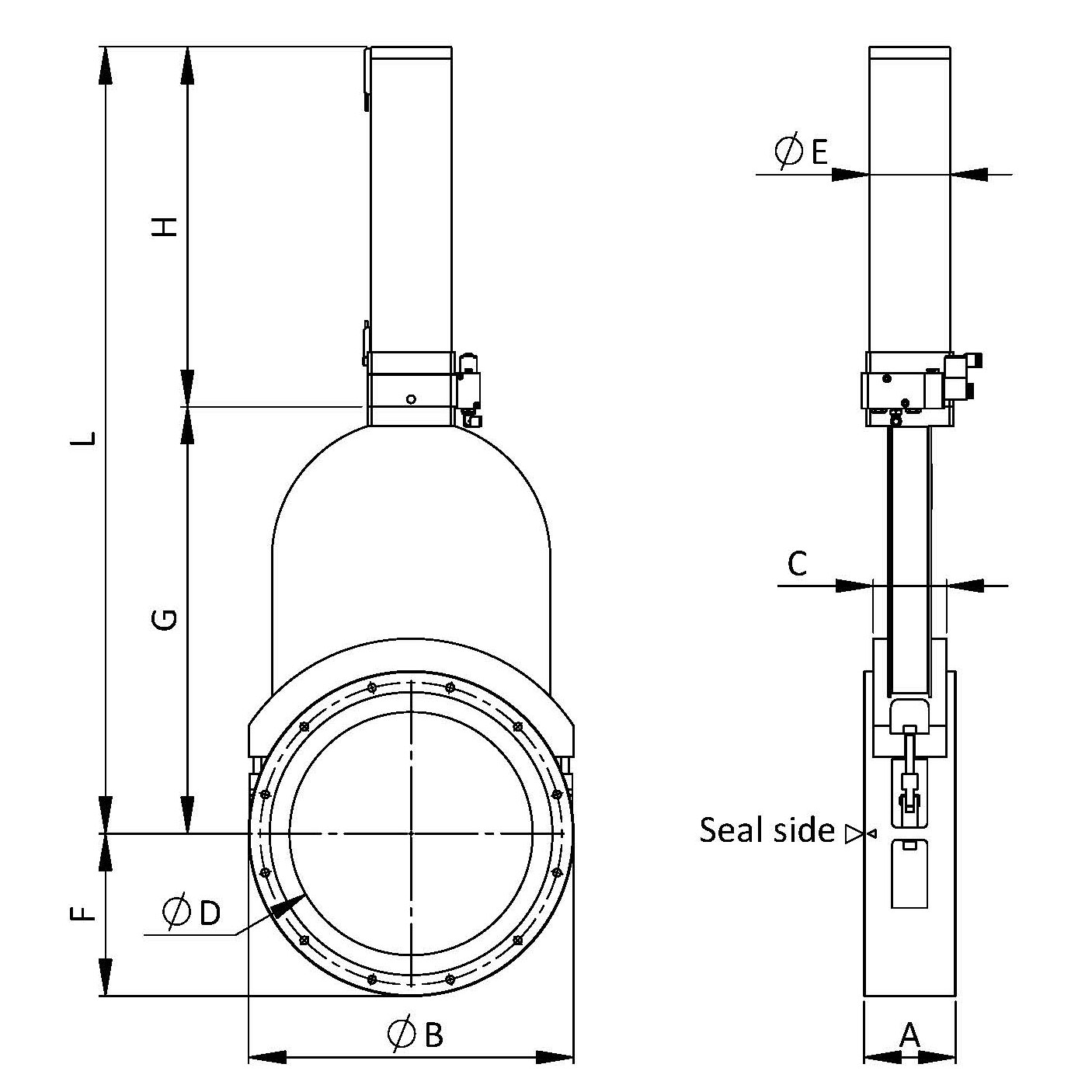

SolidWorks 2D & 3D model drawings
| Model No. | GVBS-AA-ISO250-P |
| Parts No. | G14H511NA |
| Download Type | DWG | STEP |
|
Accessory |
Parts No. |
|
Solenoid (Optional) |
DC24V 1000C0F202 AC110V 1000C0F203 VAC220V 1000C0F204 |
|
Sensor (Standard) |
DC4-24(V) or AC4-240(V), 5-40 ma 60010021 |
