ISO 5-Way Crosses
5-Way Crosses Series
select | ||||
Model No. | ISO63FXA | ISO80FXA | ISO100FXA | ISO160FXA |
Parts No. | 16262072074 | 16262082084 | 16262092094 | 16262122124 |
Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |

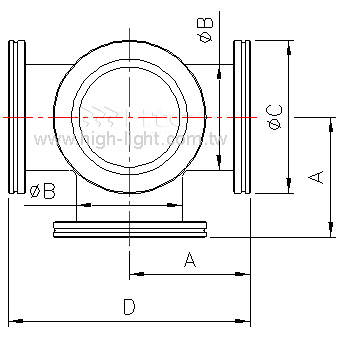

A | 82.8 | 89.15 | 105 | 133.6 |
B | 63.5 | 76.2 | 101.6 | 152.4 |
C | 95 | 110 | 130 | 180 |
D | 165.6 | 178.3 | 210 | 267.2 |
Select | Model No. | Parts No. | Material | A | B | C | D |
ISO63FXA | 16262072074 | 304 S.S. | 82.8 | 63.5 | 95 | 165.6 | |
ISO80FXA | 16262082084 | 304 S.S. | 89.15 | 76.2 | 110 | 178.3 | |
ISO100FXA | 16262092094 | 304 S.S. | 105 | 101.6 | 130 | 210 | |
ISO160FXA | 16262122124 | 304 S.S. | 133.6 | 152.4 | 180 | 267.2 |
■ Part number plus “K” for sand blasting surface
■ Part number plus “L” for polished surface
