KF法蘭有波紋管附感應器(美規)
氣動式真空角閥
select | ||||

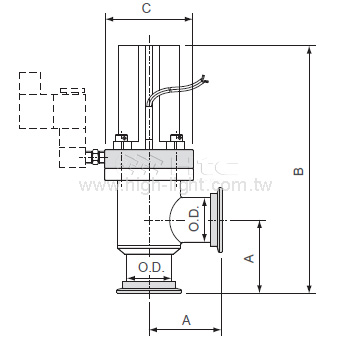

Model No. | AVBS-KF16-P | AVBS-KF25-P | AVBS-KF40-P | AVBS-KF50-P |
Parts No. | 300109110216 | 300111110216 | 300113110216 | 300114110216 |
A"(mm) | 2.15(54.6) | 2.03(51.6) | 2.40(61) | 3.40(86.3) |
B"(mm) | 6.78(172.2) | 6.53(165.9) | 8.28(210.2) | 11.08(267.6) |
C"(mm) | 2.24(56.8) | 2.24(56.8) | 2.98(75.8) | 3.48(88.4) |
O.D."(mm) | 0.75(19.05) | 1.00(25.4) | 1.50(38.1) | 2.00(50.8) |
Select | Model No. | Parts No. | A"(mm) | B"(mm) | C"(mm) | O.D."(mm) |
AVBS-KF16-P | 300109110216 | 2.15(54.6) | 6.78(172.2) | 2.24(56.8) | 0.75(19.05) | |
AVBS-KF25-P | 300111110216 | 2.03(51.6) | 6.53(165.9) | 2.24(56.8) | 1.00(25.4) | |
AVBS-KF40-P | 300113110216 | 2.40(61) | 8.28(210.2) | 2.98(75.8) | 1.50(38.1) | |
AVBS-KF50-P | 300114110216 | 3.40(86.3) | 11.08(267.6) | 3.48(88.4) | 2.00(50.8) |
