CF可旋轉法蘭雙動有波紋管(美規)
氣動式真空角閥
select | |||

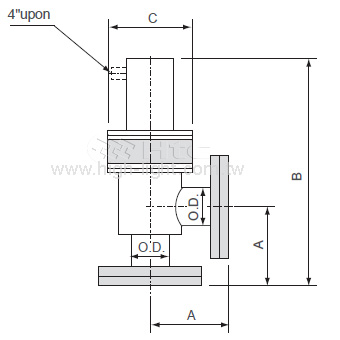

Model No. | AVB-CR63-P2 | AVB-CR100-P2 | AVB-CR150-P2 |
Parts No. | 300115230016 | 300118230016 | 300120230016 |
A"(mm) | 3.37(85.7) | 4.70(118) | 6.5(165.1) |
B"(mm) | 10.81(274.6) | 18.06(356.6) | 17.26(438.6) |
C"(mm) | 3.92(99.5) | 5.97(151.6) | 9.45(240) |
O.D."(mm) | 2.50(63.5) | 4.00(101.6) | 6.0(152.4) |
Select | Model No. | Parts No. | A"(mm) | B"(mm) | C"(mm) | O.D."(mm) |
AVB-CR63-P2 | 300115230016 | 3.37(85.7) | 10.81(274.6) | 3.92(99.5) | 2.50(63.5) | |
AVB-CR100-P2 | 300118230016 | 4.70(118) | 18.06(356.6) | 5.97(151.6) | 4.00(101.6) | |
AVB-CR150-P2 | 300120230016 | 6.5(165.1) | 17.26(438.6) | 9.45(240) | 6.0(152.4) |
