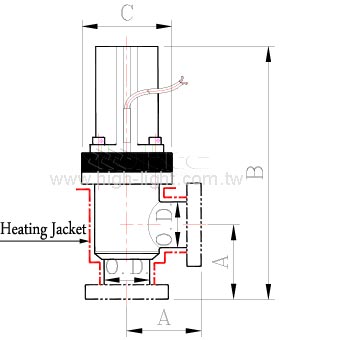

Vacuum valve with Heating Jacket(Customized)
真空バルブキットは
| select | |||||
| Model No. | HAVBS-KF25-P2 | HAVBS-KF40-P2 | HAVBS-KF50-P2 | HAVBS-ISO63-P2 | HAVBS-ISO100-P2 |
| Parts No. | 300111710216 | 300113710216 | 300114710216 | 300115740216 | 300118740216 |
| A"(mm) | 2.03"(51.6) | 2.40"(61) | 3.4"(86.3) | 3.26"(82.8) | 4.47"(113.5) |
| B"(mm) | 6.14"(155.9) | 7.33"(186.2) | 9.59"(243.6) | 10.85"(275.7) | 13.86"(352.1) |
| C"(mm) | 2.24"(56.8) | 2.98"(75.8) | 3.48"(88.4) | 3.92"(99.5) | 5.97"(151.6) |
| O.D."(mm) | 1.00"(25.4) | 1.50"(38.1) | 2.00"(50.8) | 2.50"(63.5) | 4.00"(101.6) |
| Voltage | 110 | 110 | 110 | 110 | 110 |
| Select | Model No. | Parts No. | A"(mm) | B"(mm) | C"(mm) | O.D."(mm) | Voltage |
| HAVBS-KF25-P2 | 300111710216 | 2.03"(51.6) | 6.14"(155.9) | 2.24"(56.8) | 1.00"(25.4) | 110 | |
| HAVBS-KF40-P2 | 300113710216 | 2.40"(61) | 7.33"(186.2) | 2.98"(75.8) | 1.50"(38.1) | 110 | |
| HAVBS-KF50-P2 | 300114710216 | 3.4"(86.3) | 9.59"(243.6) | 3.48"(88.4) | 2.00"(50.8) | 110 | |
| HAVBS-ISO63-P2 | 300115740216 | 3.26"(82.8) | 10.85"(275.7) | 3.92"(99.5) | 2.50"(63.5) | 110 | |
| HAVBS-ISO100-P2 | 300118740216 | 4.47"(113.5) | 13.86"(352.1) | 5.97"(151.6) | 4.00"(101.6) | 110 |
Pneumatic Actuated
With bellows, air to open, air to close
Port Connections : KF&ISO Flange
Note: All dimensions shown on this page are in inch.
Specifications
Voltage：110/220AVC
Temperature：170°C
Connecter：K Type Thermocouple & Plug
Wire Length: 2 m
Vacuum valve Heating Jacket customized according to valve body specifications, please contact us!!
