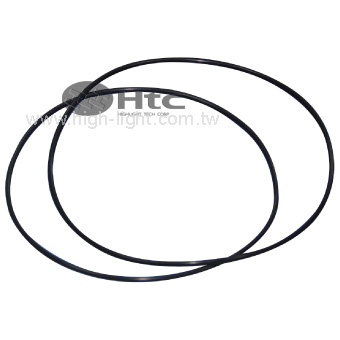

Spare Parts For HV Type
真空ゲートバルブパーツ
| select | ||||||||||||||||||||||
| Model No. | GA4C411K | GA4C511K | GA4C611K | GA4E411K | GA4E511K | GA4E611K | GA4F411K | GA4F511K | GA4F611K | GA4G411K | GA4G511K | GA4G611K | GA4H411K | GA4H511K | GA4J411K | GA4J511K | GA1A112K | GA1A312K | GA1B112K | GA1B312K | GA4H311K | GA4J311K |
| Parts No. | GA4C411K | GA4C511K | GA4C611K | GA4E411K | GA4E511K | GA4E611K | GA4F411K | GA4F511K | GA4F611K | GA4G411K | GA4G511K | GA4G611K | GA4H411K | GA4H511K | GA4J411K | GA4J511K | GA1A112K | GA1A312K | GA1B112K | GA1B312K | GA4H311K | GA4J311K |
| Size | 63 | 63 | 63 | 100 | 100 | 100 | 160 | 160 | 160 | 200 | 200 | 200 | 250 | 250 | 320 | 320 | 40 | 40 | 50 | 50 | 250 | 320 |
| Type | ISO | ISO | ISO | ISO | ISO | ISO | ISO | ISO | ISO | ISO | ISO | ISO | ISO | ISO | ISO | ISO | KF | KF | KF | KF | ISO | ISO |
| Mechanism | Ball Groove | Ball Groove | Ball Groove | Ball Groove | Ball Groove | Ball Groove | Ball Groove | Ball Groove | Ball Groove | Ball Groove | Ball Groove | Ball Groove | Ball Groove | Ball Groove | Ball Groove | Ball Groove | Linkage | Linkage | Linkage | Linkage | Linkage | Linkage |
| Actuation | Manual | Pneumatic / Limit Switch | 3 Position | Manual | Pneumatic / Limit Switch | 3 Position | Manual | Pneumatic / Limit Switch | 3 Position | Manual | Pneumatic / Limit Switch | 3 Position | Manual | Pneumatic | Manual | Pneumatic | Manual | Pneumatic | Manual | Pneumatic | Pneumatic / Limit Switch | Pneumatic / Limit Switch |
| Select | Model No. | Parts No. | Size | Type | Mechanism | Actuation |
| GA4C411K | GA4C411K | 63 | ISO | Ball Groove | Manual | |
| GA4C511K | GA4C511K | 63 | ISO | Ball Groove | Pneumatic / Limit Switch | |
| GA4C611K | GA4C611K | 63 | ISO | Ball Groove | 3 Position | |
| GA4E411K | GA4E411K | 100 | ISO | Ball Groove | Manual | |
| GA4E511K | GA4E511K | 100 | ISO | Ball Groove | Pneumatic / Limit Switch | |
| GA4E611K | GA4E611K | 100 | ISO | Ball Groove | 3 Position | |
| GA4F411K | GA4F411K | 160 | ISO | Ball Groove | Manual | |
| GA4F511K | GA4F511K | 160 | ISO | Ball Groove | Pneumatic / Limit Switch | |
| GA4F611K | GA4F611K | 160 | ISO | Ball Groove | 3 Position | |
| GA4G411K | GA4G411K | 200 | ISO | Ball Groove | Manual | |
| GA4G511K | GA4G511K | 200 | ISO | Ball Groove | Pneumatic / Limit Switch | |
| GA4G611K | GA4G611K | 200 | ISO | Ball Groove | 3 Position | |
| GA4H411K | GA4H411K | 250 | ISO | Ball Groove | Manual | |
| GA4H511K | GA4H511K | 250 | ISO | Ball Groove | Pneumatic | |
| GA4J411K | GA4J411K | 320 | ISO | Ball Groove | Manual | |
| GA4J511K | GA4J511K | 320 | ISO | Ball Groove | Pneumatic | |
| GA1A112K | GA1A112K | 40 | KF | Linkage | Manual | |
| GA1A312K | GA1A312K | 40 | KF | Linkage | Pneumatic | |
| GA1B112K | GA1B112K | 50 | KF | Linkage | Manual | |
| GA1B312K | GA1B312K | 50 | KF | Linkage | Pneumatic | |
| GA4H311K | GA4H311K | 250 | ISO | Linkage | Pneumatic / Limit Switch | |
| GA4J311K | GA4J311K | 320 | ISO | Linkage | Pneumatic / Limit Switch |
 |
