MBV-ISO LD-MP
MBV-LD Series
| select | ||||||||
| Model No. | MBV-ISO40LD-MP | MBV-ISO50LD-MP | MBV-ISO63LD-MP | MBV-ISO80LD-MP | MBV-ISO100LD-MP | MBV-ISO160LD-MP | MBV-ISO200LD-MP | MBV-ISO250LD-MP |
| Parts No. | 10765-- | 10766-- | 10767-- | 10767-- | 10768-- | 10770-- | 10771-- | 10772-- |
| A | 30 | 30 | 30 | 30 | 30 | 50 | 50 | 50 |
| B | 34 | 52 | 65 | 80 | 102 | 155 | 208 | 257 |
| C | 100 | 110 | 130 | 145 | 165 | 225 | 285 | 335 |
| D | 120 | 120 | 145 | 160 | 185 | 235 | 300 | 350 |
| F | 80 | 90 | 110 | 125 | 145 | 200 | 260 | 310 |
| G | 20 | 45 | 59 | 74 | 97 | 144 | 199 | 249 |
| H | 260.5 | 260.5 | 285.5 | 300.5 | 325.5 | 389 | 456.5 | 506.5 |
| J | 130.5 | 130.5 | 143 | 150.5 | 163 | 194 | 229 | 254 |
| K | 55 | 55 | 49 | 49 | 55 | 70 | 85 | 85 |
| L | 245 | 245 | 246 | 246 | 246.5 | 264 | 292 | 292.5 |
| Q | 100 | 100 | 100 | 100 | 100 | 110 | 110 | 110 |
| R | - | - | - | - | - | - | 22 | 22 |
| n-E | 4-φ7 | 4-φ9 | 4-φ9 | 8-φ9 | 8-φ9 | 8-φ11 | 12-φ11 | 12-φ11 |
| Select | Model No. | Parts No. | A | B | C | D | F | G | H | J | K | L | Q | R | n-E |
| MBV-ISO40LD-MP | 10765-- | 30 | 34 | 100 | 120 | 80 | 20 | 260.5 | 130.5 | 55 | 245 | 100 | - | 4-φ7 | |
| MBV-ISO50LD-MP | 10766-- | 30 | 52 | 110 | 120 | 90 | 45 | 260.5 | 130.5 | 55 | 245 | 100 | - | 4-φ9 | |
| MBV-ISO63LD-MP | 10767-- | 30 | 65 | 130 | 145 | 110 | 59 | 285.5 | 143 | 49 | 246 | 100 | - | 4-φ9 | |
| MBV-ISO80LD-MP | 10767-- | 30 | 80 | 145 | 160 | 125 | 74 | 300.5 | 150.5 | 49 | 246 | 100 | - | 8-φ9 | |
| MBV-ISO100LD-MP | 10768-- | 30 | 102 | 165 | 185 | 145 | 97 | 325.5 | 163 | 55 | 246.5 | 100 | - | 8-φ9 | |
| MBV-ISO160LD-MP | 10770-- | 50 | 155 | 225 | 235 | 200 | 144 | 389 | 194 | 70 | 264 | 110 | - | 8-φ11 | |
| MBV-ISO200LD-MP | 10771-- | 50 | 208 | 285 | 300 | 260 | 199 | 456.5 | 229 | 85 | 292 | 110 | 22 | 12-φ11 | |
| MBV-ISO250LD-MP | 10772-- | 50 | 257 | 335 | 350 | 310 | 249 | 506.5 | 254 | 85 | 292.5 | 110 | 22 | 12-φ11 |
Unit: mm

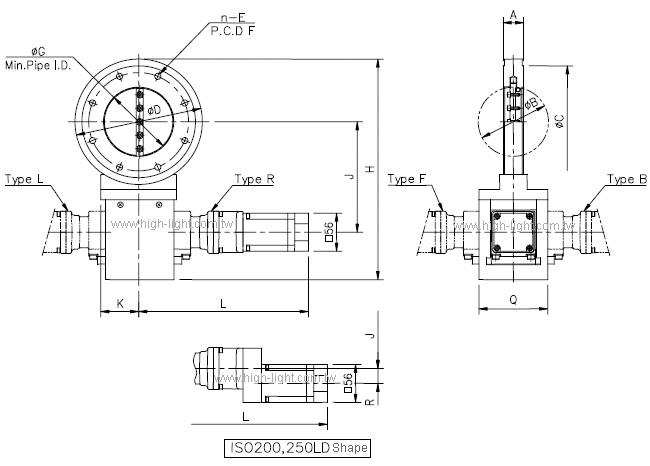

MBV-ISO LD-MP Series dimension drawing
Note 1: The above is the flange produced in accordance with ISO 1609 Vacuum technology-Flange dimensions.
Note 2: The station type of the motor is filled in the parentheses behind the model (it can be selected from 4 positions)
※ The change of the specification due to product improvement will not be informed in advance.
