KF 高真空アルミニウム合金角弁-単動、常閉
アルミ製アングル真空バルブ
| select | ||||||||||||||||||

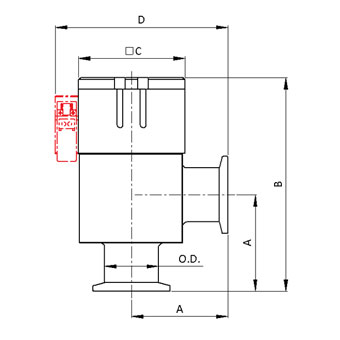

| Model No. | AVABH-KF16-P-E | AVABH-KF25-P-E | AVABH-KF40-P-E | AVABH-KF50-P-E | AVABHS-KF16-P-E | AVABHS-KF25-P-E | AVABHS-KF40-P-E | AVABHS-KF50-P-E | AVABHSSV-KF16-P-E-24VDC | AVABHSSV-KF25-P-E-24VDC | AVABHSSV-KF40-P-E-24VDC | AVABHSSV-KF50-P-E-24VDC | AVAH-KF16-P-E | AVAH-KF25-P-E | AVAH-KF40-P-E | AVAHS-KF16-P-E | AVAHS-KF25-P-E | AVAHS-KF40-P-E |
| Parts No. | 31010911002MA | 31011111002MA | 31011311002MA | 31011411002MA | 31010911022MA | 31011111022MA | 31011311022MA | 31011411022MA | 31010911102MA | 31011111102MA | 31011311102MA | 31011411102MA | 31010911002M0 | 31011111002M0 | 31011311002M0 | 31010911022M0 | 31011111022M0 | 31011311022M0 |
| A | 40 | 50 | 65 | 70 | 40 | 50 | 65 | 70 | 40 | 50 | 65 | 70 | 40 | 50 | 65 | 50 | 40 | 65 |
| B | 102 | 111 | 153 | 165 | 102 | 111 | 153 | 165 | 102 | 111 | 153 | 165 | 102 | 111 | 153 | 111 | 102 | 153 |
| C | 46.4 | 55.4 | 70.4 | 77 | 46.4 | 55.4 | 70.4 | 77 | 46.4 | 55.4 | 70.4 | 77 | 46.4 | 55.4 | 70.4 | 55.4 | 46.4 | 70.4 |
| D | - | - | - | - | - | - | - | - | 75 | 90 | 112 | 126 | - | - | - | - | - | - |
| O.D. | 20 | 28 | 45 | 55 | 20 | 28 | 45 | 55 | 20 | 28 | 45 | 55 | 20 | 28 | 45 | 28 | 20 | 45 |
| Select | Model No. | Parts No. | A | B | C | D | O.D. |
| AVABH-KF16-P-E | 31010911002MA | 40 | 102 | 46.4 | - | 20 | |
| AVABH-KF25-P-E | 31011111002MA | 50 | 111 | 55.4 | - | 28 | |
| AVABH-KF40-P-E | 31011311002MA | 65 | 153 | 70.4 | - | 45 | |
| AVABH-KF50-P-E | 31011411002MA | 70 | 165 | 77 | - | 55 | |
| AVABHS-KF16-P-E | 31010911022MA | 40 | 102 | 46.4 | - | 20 | |
| AVABHS-KF25-P-E | 31011111022MA | 50 | 111 | 55.4 | - | 28 | |
| AVABHS-KF40-P-E | 31011311022MA | 65 | 153 | 70.4 | - | 45 | |
| AVABHS-KF50-P-E | 31011411022MA | 70 | 165 | 77 | - | 55 | |
| AVABHSSV-KF16-P-E-24VDC | 31010911102MA | 40 | 102 | 46.4 | 75 | 20 | |
| AVABHSSV-KF25-P-E-24VDC | 31011111102MA | 50 | 111 | 55.4 | 90 | 28 | |
| AVABHSSV-KF40-P-E-24VDC | 31011311102MA | 65 | 153 | 70.4 | 112 | 45 | |
| AVABHSSV-KF50-P-E-24VDC | 31011411102MA | 70 | 165 | 77 | 126 | 55 | |
| AVAH-KF16-P-E | 31010911002M0 | 40 | 102 | 46.4 | - | 20 | |
| AVAH-KF25-P-E | 31011111002M0 | 50 | 111 | 55.4 | - | 28 | |
| AVAH-KF40-P-E | 31011311002M0 | 65 | 153 | 70.4 | - | 45 | |
| AVAHS-KF16-P-E | 31010911022M0 | 50 | 111 | 55.4 | - | 28 | |
| AVAHS-KF25-P-E | 31011111022M0 | 40 | 102 | 46.4 | - | 20 | |
| AVAHS-KF40-P-E | 31011311022M0 | 65 | 153 | 70.4 | - | 45 |
製品の特徴
- 簡単なメンテナンス、波紋管やシール部品の迅速な取り外しと交換が可能
- アルミニウム合金6061-T6製の弁体は磁性を持たない
- 2つのマイクロスイッチを取り付け済み
- 顧客の要望に応じて、磁気感知器またはマイクロスイッチを取り付け可能
| 適用エリア | フランジ | ソレノイド | センサー | 形成ベロー | 16 | 25 | 40 | 50 |
| ヨーロッパ | KF | √ | 31010911002MA | 31011111002MA | 31011311002MA | 31011411002MA | ||
| ヨーロッパ | KF | √ | √ | 31010911022MA | 31011111022MA | 31011311022MA | 31011411022MA | |
| ヨーロッパ | KF | 24VDC | √ | 31010911102MA | 31011111102MA | 31011311102MA | 31011411102MA | |
| ヨーロッパ | KF | 31010911002M0 | 31011111002M0 | 31011311002M0 | - | |||
| ヨーロッパ | KF | √ | 31010911022M0 | 31011111022M0 | 31011311022M0 | - |
