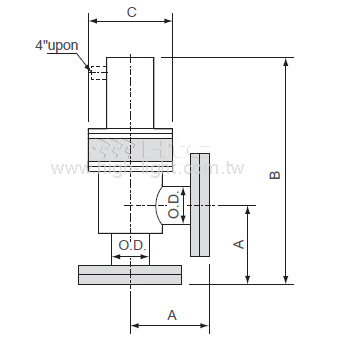

ISO Flange with Bellows / Double Acting(Europe)
Angle Valves | Pneumatically Actuated


select | ||
Model No. | AVB-ISO63-P2-E | AVB-ISO80-P2-E |
Parts No. | 310115240016 | 310116240016 |
A | 88 | 98 |
B | 276.9 | 286.9 |
C | 99.5 | 114 |
O.D. | 63.5 | 76.2 |


Select | Model No. | Parts No. | A | B | C | O.D. |
AVB-ISO63-P2-E | 310115240016 | 88 | 276.9 | 99.5 | 63.5 | |
AVB-ISO80-P2-E | 310116240016 | 98 | 286.9 | 114 | 76.2 |
Note: All dimensions shown on this page are in inch(mm)
SolidWorks 2D & 3D model drawings
Model No. | AVB-ISO63-P2-E | AVB-ISO80-P2-E |
Parts No. | 310115240016 | 310116240016 |
Download Type | DWG | STEP | DWG | STEP |
Note: Please [Right click] and select [Save link as]. Wait a moment and the archive window appears.
