KF TYPE pneumatic butterfly valve
Htc Pneumatic Butterfly Valve

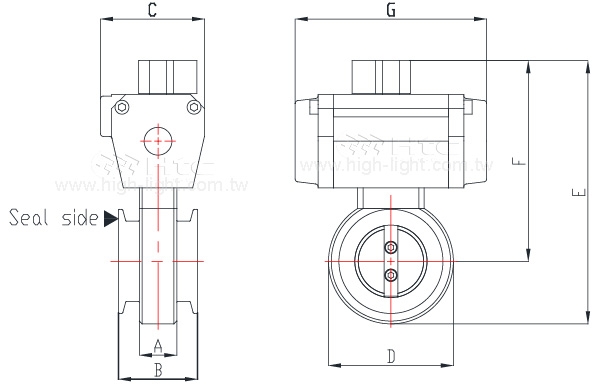

| select | |||
| Model No. | KF25BFVP2 | KF40BFVP2 | KF50BFVP2 |
| Parts No. | 3202111101213 | 3202131101213 | 3202141101213 |
| A | 27 | 27 | 27 |
| B | 50 | 57 | 57 |
| C | 49 | 75 | 75 |
| D | 65 | 80 | 90 |
| E | 144 | 192 | 203 |
| F | 112 | 152 | 158 |
| G | 100 | 138 | 138 |

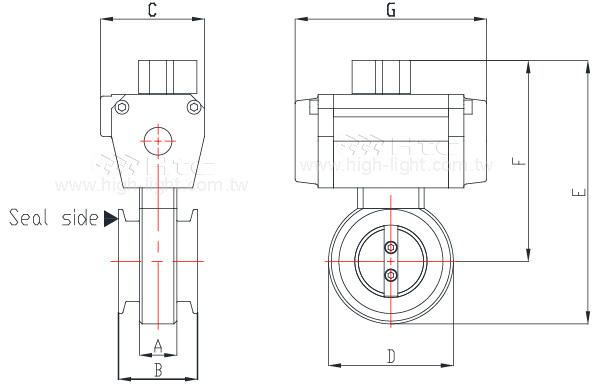

| Select | Model No. | Parts No. | A | B | C | D | E | F | G |
| KF25BFVP2 | 3202111101213 | 27 | 50 | 49 | 65 | 144 | 112 | 100 | |
| KF40BFVP2 | 3202131101213 | 27 | 57 | 75 | 80 | 192 | 152 | 138 | |
| KF50BFVP2 | 3202141101213 | 27 | 57 | 75 | 90 | 203 | 158 | 138 |
SolidWorks 2D & 3D model drawings
| Model No. | KF25BFVP2 | KF40BFVP2 | KF50BFVP2 |
| Parts No. | 3202111101213 | 3202131101213 | 3202141101213 |
| Download Type | DWG | STEP | DWG | STEP | DWG | STEP |
Specifications
- Valve size for 1"(25.4mm) to 2"(50.8mm)
- Flange：KF 25, KF40, KF50
- Pressure Range： 10-8 mbar to 2 bar
- Leak rate: 1x10-9 mbar. l/sec
- Body materials：304S.S.
- Seal materials：Viton®
- Temperature ：Actuator ≦ 60°C / Body ≦ 120°C
- Cycle life*：KF25 - KF50 >>> 1,500,000
(O-ring on plate is a consumptive material in the butterfly valve, cycle life is 250,000) - Option ：Limit switch , solenoid (For KF40~KF50)
- Compressed air pressure : 4 ~ 6 kg/cm2
- Compressed air connecter : 2x 1/8”NPT (The product does not come with air connector)
