All in one HV aluminum angle valve
Aluminum block valves
| select | |||

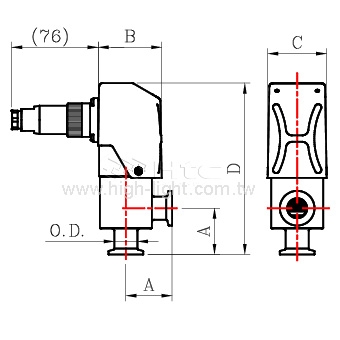

| Model No. | AVABHLS-KF16-P-E | AVABHLS-KF25-P-E | AVABHLS-KF40-P-E |
| Parts No. | see KF16 list | see KF25 list | see KF40 list |
| A | 40 | 50 | 65 |
| B | 55 | 65.5 | 81 |
| C | 51 | 60 | 75 |
| D | 148 | 153 | 201 |
| O.D. | 20 | 28 | 45 |
| Select | Model No. | Parts No. | A | B | C | D | O.D. |
| AVABHLS-KF16-P-E | see KF16 list | 40 | 55 | 51 | 148 | 20 | |
| AVABHLS-KF25-P-E | see KF25 list | 50 | 65.5 | 60 | 153 | 28 | |
| AVABHLS-KF40-P-E | see KF40 list | 65 | 81 | 75 | 201 | 45 |
A.I.O. parts number list:
|
A. I. O. Parts Number |
|
KF16 |
KF25 |
KF40 |
|
Without Solenoid, with position indicator |
|
31010911042MA |
31011111042MA |
31011311042MA |
|
With Solenoid, with position indicator |
24V DC |
31010911142MA |
31011111142MA |
31011311142MA |
|
110V AC 50/60 Hz |
31010911242MA |
31011111242MA |
31011311242MA |
|
|
220V AC 50/60 Hz |
31010911342MA |
31011111342MA |
31011311342MA |
|
|
24V AC 50/60 Hz |
31010911442MA |
31011111442MA |
31011311442MA |
Features

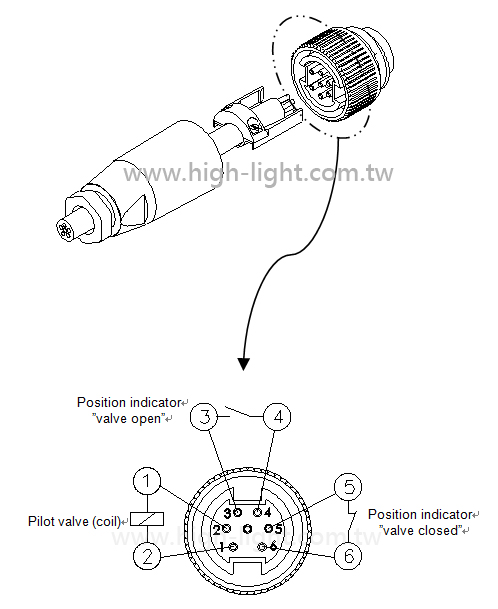

1. Twin micro switches in Htc vacuum standard All-in-one valve.
2. Available in aluminum or stainless steel valve body.
3. Non-magnetic aluminum 6061-T6 valve body.

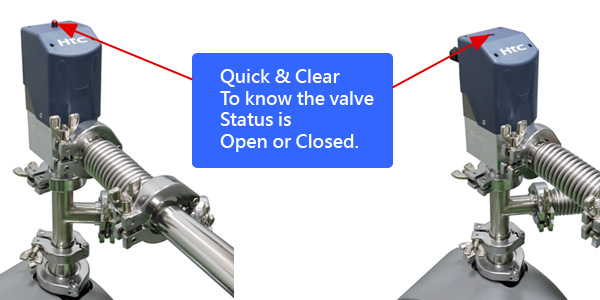

4. Visible position indicator on the top of valve.

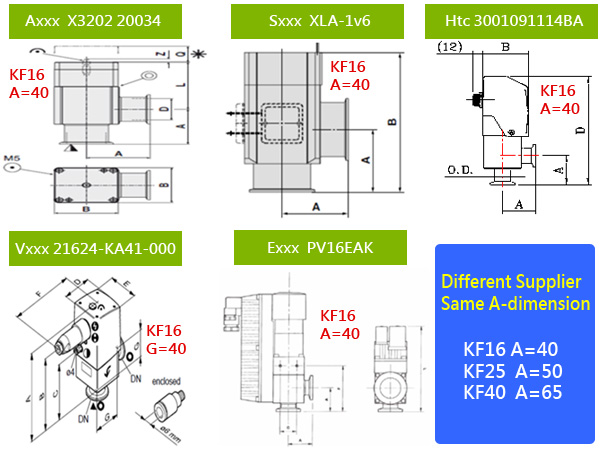

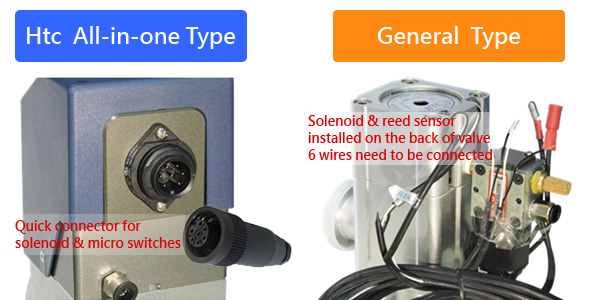

Comparison

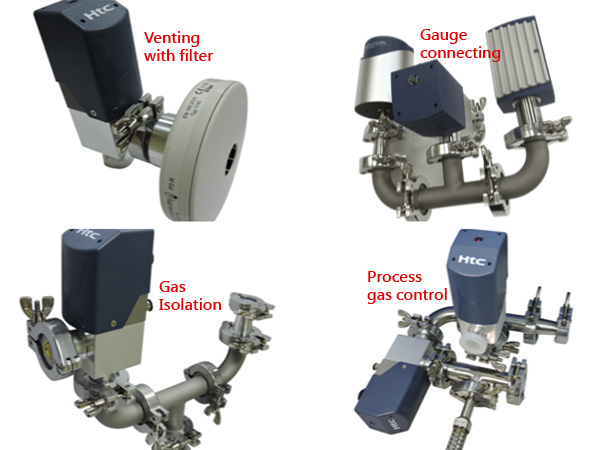

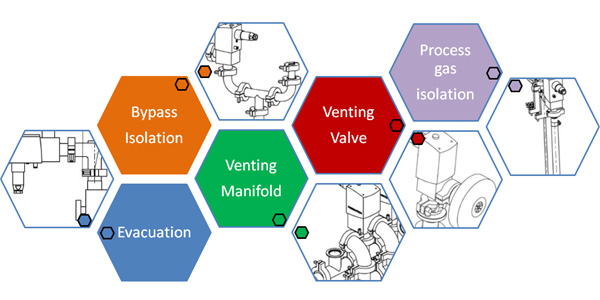

Application

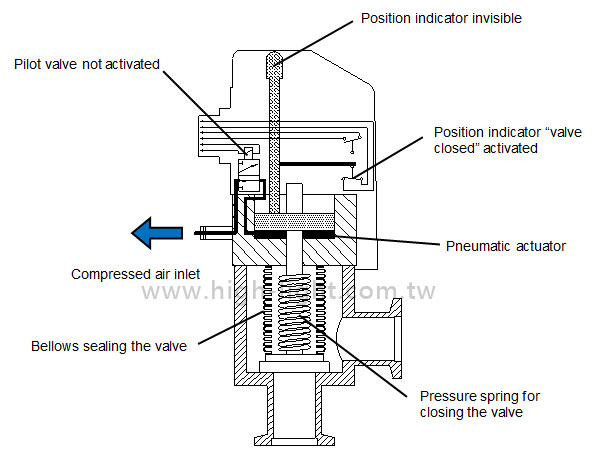

A.I.O. HV aluminum angle valve - Pneumatic Actuated Valve
With formed bellows seal , Normal close
All in one type
Aluminum block valves are all in one valves for high-vacuum requirements.
It used for applications in semiconductor manufacturing, R&D, and industrial vacuum systems.
Specification
- All-in-One design
- 10 million cycle 316Ti stainless steel bellows
- Easy maintenance, fast bellows and seal replacement
- Fast opening and closing
- High purity aluminum or stainless steel body
- Leak rate: 1x10-9 mbar.l/s
- Flange : KF(NW)
