CF-ISO Tubulated Adaptor
Tubulated Adaptor
| select | |||||||
| Model No. | CF63S63A | CF100S63A | CF100S100A | ISO160C100A | CF150S63A | CF150S100A | ISO160C150A |
| Parts No. | 17080702132 | 17080902132 | 17080902152 | 17021208152 | 17081102132 | 17081102152 | 17021208172 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |

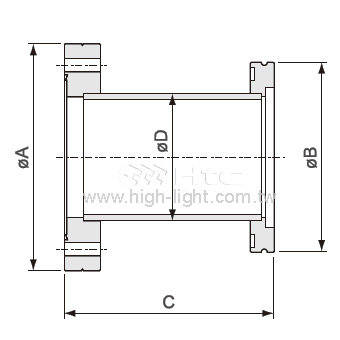

| A | 113.6 | 151.6 | 151.6 | 151.6 | 202.5 | 202.5 | 202.5 |
| B | 95 | 95 | 130 | 180 | 95 | 130 | 180 |
| C | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
| D | 63.5 | 63.5 | 101.6 | 101.6 | 63.5 | 101.6 | 152.4 |
| Select | Model No. | Parts No. | Material | A | B | C | D |
| CF63S63A | 17080702132 | 304 S.S. | 113.6 | 95 | 90 | 63.5 | |
| CF100S63A | 17080902132 | 304 S.S. | 151.6 | 95 | 90 | 63.5 | |
| CF100S100A | 17080902152 | 304 S.S. | 151.6 | 130 | 90 | 101.6 | |
| ISO160C100A | 17021208152 | 304 S.S. | 151.6 | 180 | 90 | 101.6 | |
| CF150S63A | 17081102132 | 304 S.S. | 202.5 | 95 | 90 | 63.5 | |
| CF150S100A | 17081102152 | 304 S.S. | 202.5 | 130 | 90 | 101.6 | |
| ISO160C150A | 17021208172 | 304 S.S. | 202.5 | 180 | 90 | 152.4 |
■ Part number plus “K” for sand blasting surface
■ Part number plus “L” for polished surface
