Clamp End Ball Valve
Sanitary Butterfly - Ball Valve
| select | ||||||||

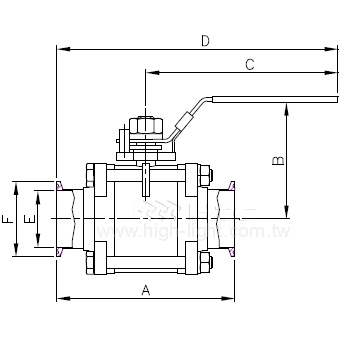

| Model No. | SF10BV89 | SF16BV101 | SF25BV114 | SF40BV140 | SF50BV156 | SF63BV197 | SF80BV229 | SF100BV243 |
| Parts No. | 3201073112131 | 3201093112131 | 3201113112131 | 3201133112131 | 3201143112131 | 3201153112131 | 3201163112131 | 3201183112131 |
| A | 89 | 101 | 114 | 140 | 156 | 197 | 229 | 242.7 |
| B | 55 | 60 | 69 | 84 | 92 | 126.8 | 136 | 158.8 |
| C | 132 | 131.5 | 165 | 194.3 | 194.3 | 252 | 252 | 333 |
| D | 176.5 | 182 | 222 | 264.3 | 272.3 | 350.5 | 366.5 | 454.4 |
| E | 9.5 | 15.9 | 22.2 | 35 | 47.6 | 60.3 | 73 | 97.4 |
| F | 25 | 25 | 50.5 | 50.5 | 64 | 77.5 | 91 | 119 |
| Size | 1/2" | 3/4" | 1.0" | 1.5" | 2.0" | 2.5" | 3.0" | 4.0" |
| Select | Model No. | Parts No. | A | B | C | D | E | F | Size |
| SF10BV89 | 3201073112131 | 89 | 55 | 132 | 176.5 | 9.5 | 25 | 1/2" | |
| SF16BV101 | 3201093112131 | 101 | 60 | 131.5 | 182 | 15.9 | 25 | 3/4" | |
| SF25BV114 | 3201113112131 | 114 | 69 | 165 | 222 | 22.2 | 50.5 | 1.0" | |
| SF40BV140 | 3201133112131 | 140 | 84 | 194.3 | 264.3 | 35 | 50.5 | 1.5" | |
| SF50BV156 | 3201143112131 | 156 | 92 | 194.3 | 272.3 | 47.6 | 64 | 2.0" | |
| SF63BV197 | 3201153112131 | 197 | 126.8 | 252 | 350.5 | 60.3 | 77.5 | 2.5" | |
| SF80BV229 | 3201163112131 | 229 | 136 | 252 | 366.5 | 73 | 91 | 3.0" | |
| SF100BV243 | 3201183112131 | 242.7 | 158.8 | 333 | 454.4 | 97.4 | 119 | 4.0" |
Specifications
- Valve size for 1/2” to 4.0”
- Flange: Clamp End (3A Inch)
- Body materials: 316 Stainless Steel
- Seal materials: PTFE
