矩形門型閘閥
矩形閥門
| select | ||||||||
| Model No. | GR-A-32222-D | GR-A-46236-D | GR-A-50336-D | GR-A-56496-D | GR-S-32222-D | GR-S-46236-D | GR-S-50336-D | GR-S-56496-D |
| Parts No. | GR014514 | GR024514 | GR034514 | GR044514 | GR014614 | GR024614 | GR034614 | GR044614 |
| Gate | A6061-T6 | A6061-T6 | A6061-T6 | A6061-T6 | 304S.S | 304S.S | 304S.S | 304S.S |
| D | 222 | 236 | 336 | 496 | 222 | 236 | 336 | 496 |
| D1 | 32 | 46 | 50 | 56 | 32 | 46 | 50 | 56 |
| D2 | 239 | 253 | 352 | 512 | 239 | 253 | 352 | 512 |
| D3 | 48 | 62 | 66 | 72 | 48 | 62 | 66 | 72 |
| Actuated time | open<=1 close<=1 | open<=1 close<=1 | open<=1 close<=1 | open<=2 close<=2 | open<=1 close<=1 | open<=1 close<=1 | open<=1 close<=1 | open<=2 close<=2 |
| Gate seal | Viton | Viton | Viton | Viton | Viton | Viton | Viton | Viton |
| Weight (Kg) | 9kg | 9.5kg | 10kg | 11.5kg | 11kg | 12kg | 14kg | 18kg |
| Select | Model No. | Parts No. | Gate | D | D1 | D2 | D3 | Actuated time | Gate seal | Weight (Kg) |
| GR-A-32222-D | GR014514 | A6061-T6 | 222 | 32 | 239 | 48 | open<=1 close<=1 | Viton | 9kg | |
| GR-A-46236-D | GR024514 | A6061-T6 | 236 | 46 | 253 | 62 | open<=1 close<=1 | Viton | 9.5kg | |
| GR-A-50336-D | GR034514 | A6061-T6 | 336 | 50 | 352 | 66 | open<=1 close<=1 | Viton | 10kg | |
| GR-A-56496-D | GR044514 | A6061-T6 | 496 | 56 | 512 | 72 | open<=2 close<=2 | Viton | 11.5kg | |
| GR-S-32222-D | GR014614 | 304S.S | 222 | 32 | 239 | 48 | open<=1 close<=1 | Viton | 11kg | |
| GR-S-46236-D | GR024614 | 304S.S | 236 | 46 | 253 | 62 | open<=1 close<=1 | Viton | 12kg | |
| GR-S-50336-D | GR034614 | 304S.S | 336 | 50 | 352 | 66 | open<=1 close<=1 | Viton | 14kg | |
| GR-S-56496-D | GR044614 | 304S.S | 496 | 56 | 512 | 72 | open<=2 close<=2 | Viton | 18kg |
矩形門型閘閥

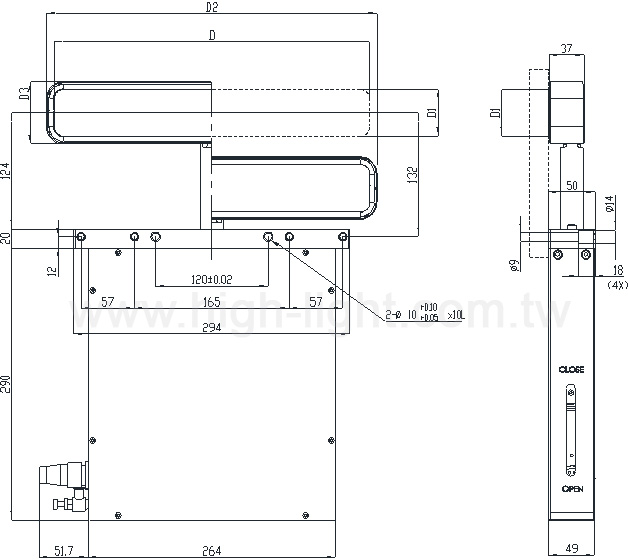

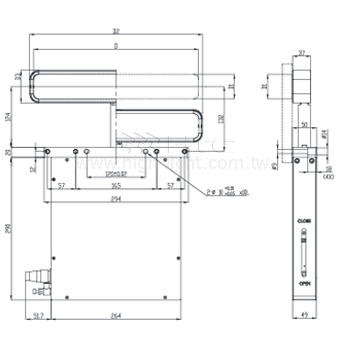

SolidWorks 2D & 3D 產品圖稿
| Model No. | GR-A-32222-D | GR-A-46236-D | GR-A-50336-D | GR-A-56496-D | GR-S-32222-D | GR-S-46236-D | GR-S-50336-D | GR-S-56496-D |
| Parts No. | GR014514 | GR024514 | GR034514 | GR044514 | GR014614 | GR024614 | GR034614 | GR044614 |
| Download Type | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP |
技術規格
|
使用壽命(*) |
1 million |
|
|
洩漏率 |
1 x 10-9 mbar.l/s |
|
|
表面處理 |
Electrolytic polishing |
|
|
使用温度 |
||
|
Driving module |
<60℃ |
|
|
壓力範圍 |
1* 10-8 mbar to 1.0 bar |
|
|
操作氣壓源壓力 |
Pneumatic 5~7 Kg/cm² |
|
|
Compressed air connection |
Φ6 mm |
|
|
Standard Seal |
Gate |
Viton® O'ring |
|
Open/Close sensor |
DC4-24(V) or AC4-240(V), 5-40 ma |
|
|
Solenoid Power |
DC24(V) ,AC24(V),AC110(V),AC220(V) |
|
|
安裝方向 |
Actuator up or down |
|

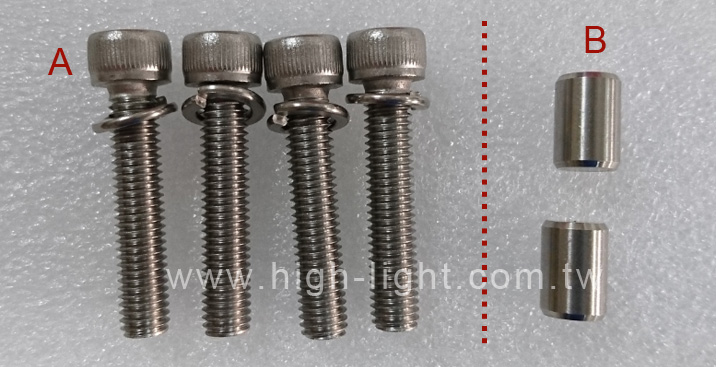

| A | B |
|
M8x45L |
PIN Φ10x15L |
