ISO320高真空閘閥-氣動連杆式含波紋管與極限開關
高真空閘閥(塗潤滑油)

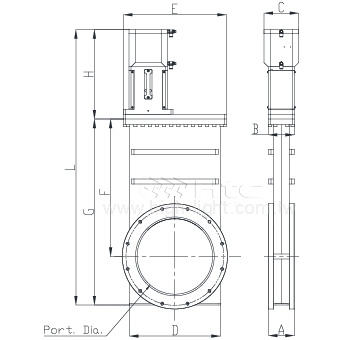

select | |
Model No. | GVBLS-SS-ISO320-P |
Parts No. | GA4J311NB |
A | 103.6 |
B | 105 |
C | 140 |
D | 367 |
E | 415 |
F | 554 |
G | 750 |
H | 361 |
L | 1111 |
Bolt Size*No | M12x12 |
Bolt P.C.D. | 395 |
Bonnet seal | Viton |
Flange O.D. | 425 |
Port Dia. | 305 |
Thread Depth | 20 |
Select | Model No. | Parts No. | A | B | C | D | E | F | G | H | L | Bolt Size*No | Bolt P.C.D. | Bonnet seal | Flange O.D. | Port Dia. | Thread Depth |
GVBLS-SS-ISO320-P | GA4J311NB | 103.6 | 105 | 140 | 367 | 415 | 554 | 750 | 361 | 1111 | M12x12 | 395 | Viton | 425 | 305 | 20 |
