高真空閘閥-氣動鋼珠式真空閘閥含波紋管和極限開關
高真空閘閥(塗潤滑油)

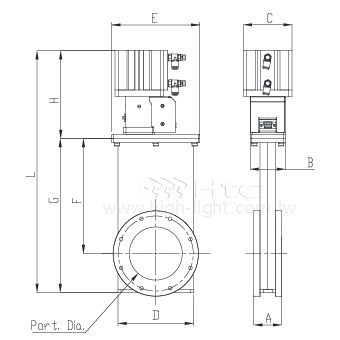

| select | ||||
| Model No. | GVBBLS-SS-ISO63-P | GVBBLS-SS-ISO100-P | GVBBLS-SS-ISO160-P | GVBBLS-SS-ISO200-P |
| Parts No. | GA4C511NB | GA4E511NB | GA4F511NB | GA4G511NB |
| A | 53 | 53.6 | 67 | 67 |
| B | 68 | 68 | 68 | 70 |
| C | 75 | 94 | 94 | 94 |
| D | 107 | 146 | 204 | 245 |
| E | 128 | 170 | 220 | 267 |
| F | 158 | 222 | 306.5 | 383 |
| G | 207 | 297 | 407 | 507 |
| H | 156 | 170 | 198 | 260 |
| L | 366 | 467 | 605 | 767 |
| Bolt Size*No | M8x4 | M8x8 | M10x8 | M10x12 |
| Bolt P.C.D. | 110 | 145 | 200 | 260 |
| Bonnet seal | Viton | Viton | Viton | Viton |
| Flange O.D. | 130 | 165 | 225 | 285 |
| Port Dia. | 63.7 | 102 | 153 | 200 |
| Thread Depth | 10 | 12 | 16 | 16 |
| Select | Model No. | Parts No. | A | B | C | D | E | F | G | H | L | Bolt Size*No | Bolt P.C.D. | Bonnet seal | Flange O.D. | Port Dia. | Thread Depth |
| GVBBLS-SS-ISO63-P | GA4C511NB | 53 | 68 | 75 | 107 | 128 | 158 | 207 | 156 | 366 | M8x4 | 110 | Viton | 130 | 63.7 | 10 | |
| GVBBLS-SS-ISO100-P | GA4E511NB | 53.6 | 68 | 94 | 146 | 170 | 222 | 297 | 170 | 467 | M8x8 | 145 | Viton | 165 | 102 | 12 | |
| GVBBLS-SS-ISO160-P | GA4F511NB | 67 | 68 | 94 | 204 | 220 | 306.5 | 407 | 198 | 605 | M10x8 | 200 | Viton | 225 | 153 | 16 | |
| GVBBLS-SS-ISO200-P | GA4G511NB | 67 | 70 | 94 | 245 | 267 | 383 | 507 | 260 | 767 | M10x12 | 260 | Viton | 285 | 200 | 16 |
