大小頭管件
大轉小縮減管接頭
| select | ||||||||||||||

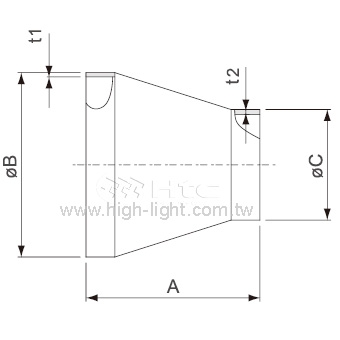

| Model No. | 25-16CR | 40--16CR | 40-25CR | 50-25CR | 50-40CR | 63-40CR | 63-50CR | 80-50CR | 80-63CR | 100-50CR | 100-63CR | 100-80CR | 150-80CR | 150-100CR |
| Parts No. | 16230030024 | 16230050024 | 16230050034 | 16230060034 | 16230060054 | 16230070054 | 16230070064 | 16230080064 | 16230080074 | 16230090064 | 16230090074 | 16230090084 | 16230110084 | 16230110094 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |
| A | 35 | 60.3 | 60.3 | 60.3 | 60.3 | 60.3 | 60.3 | 92 | 92 | 92 | 92 | 92 | 152.4 | 152.4 |
| B | 25.4 | 38.1 | 38.1 | 50.8 | 50.8 | 63.5 | 63.5 | 76.2 | 76.2 | 101.6 | 101.6 | 101.6 | 152.4 | 152.4 |
| C | 19.05 | 19.05 | 25.4 | 25.4 | 38.1 | 38.1 | 50.8 | 50.8 | 63.5 | 50.8 | 63.5 | 76.2 | 76.2 | 101.6 |
| t1 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 2.1 | 2.1 | 2.1 | 2.77 | 2.77 |
| t2 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 2.1 |
| Select | Model No. | Parts No. | Material | A | B | C | t1 | t2 |
| 25-16CR | 16230030024 | 304 S.S. | 35 | 25.4 | 19.05 | 1.65 | 1.65 | |
| 40--16CR | 16230050024 | 304 S.S. | 60.3 | 38.1 | 19.05 | 1.65 | 1.65 | |
| 40-25CR | 16230050034 | 304 S.S. | 60.3 | 38.1 | 25.4 | 1.65 | 1.65 | |
| 50-25CR | 16230060034 | 304 S.S. | 60.3 | 50.8 | 25.4 | 1.65 | 1.65 | |
| 50-40CR | 16230060054 | 304 S.S. | 60.3 | 50.8 | 38.1 | 1.65 | 1.65 | |
| 63-40CR | 16230070054 | 304 S.S. | 60.3 | 63.5 | 38.1 | 1.65 | 1.65 | |
| 63-50CR | 16230070064 | 304 S.S. | 60.3 | 63.5 | 50.8 | 1.65 | 1.65 | |
| 80-50CR | 16230080064 | 304 S.S. | 92 | 76.2 | 50.8 | 1.65 | 1.65 | |
| 80-63CR | 16230080074 | 304 S.S. | 92 | 76.2 | 63.5 | 1.65 | 1.65 | |
| 100-50CR | 16230090064 | 304 S.S. | 92 | 101.6 | 50.8 | 2.1 | 1.65 | |
| 100-63CR | 16230090074 | 304 S.S. | 92 | 101.6 | 63.5 | 2.1 | 1.65 | |
| 100-80CR | 16230090084 | 304 S.S. | 92 | 101.6 | 76.2 | 2.1 | 1.65 | |
| 150-80CR | 16230110084 | 304 S.S. | 152.4 | 152.4 | 76.2 | 2.77 | 1.65 | |
| 150-100CR | 16230110094 | 304 S.S. | 152.4 | 152.4 | 101.6 | 2.77 | 2.1 |
