CF法蘭縮減管接頭(固定)
大轉小縮減管接頭
| select | ||||||||

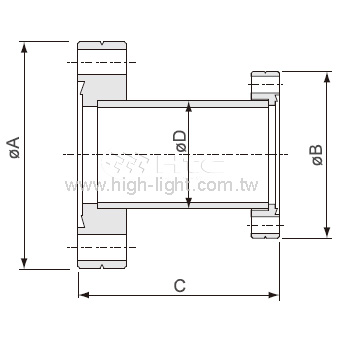

| Model No. | CF35RA16 | CF63RA16 | CF63RA35 | CF100RA35 | CF100RA63 | CF150RA35 | CF150RA63 | CF150RA100 |
| Parts No. | 17080408052 | 17080708052 | 17080708082 | 17080908082 | 17080908132 | 17081108082 | 17081108132 | 17081108152 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |
| A | 69.5 | 113.6 | 113.6 | 151.6 | 151.6 | 202.5 | 202.5 | 202.5 |
| B | 33.8 | 33.8 | 69.5 | 69.5 | 113.6 | 69.5 | 113.6 | 151.6 |
| C | 76.2 | 76.2 | 76.2 | 76.2 | 76.2 | 76.2 | 76.2 | 76.2 |
| D | 19.05 | 19.05 | 38.1 | 38.1 | 63.5 | 38.1 | 63.5 | 101.6 |
| Select | Model No. | Parts No. | Material | A | B | C | D |
| CF35RA16 | 17080408052 | 304 S.S. | 69.5 | 33.8 | 76.2 | 19.05 | |
| CF63RA16 | 17080708052 | 304 S.S. | 113.6 | 33.8 | 76.2 | 19.05 | |
| CF63RA35 | 17080708082 | 304 S.S. | 113.6 | 69.5 | 76.2 | 38.1 | |
| CF100RA35 | 17080908082 | 304 S.S. | 151.6 | 69.5 | 76.2 | 38.1 | |
| CF100RA63 | 17080908132 | 304 S.S. | 151.6 | 113.6 | 76.2 | 63.5 | |
| CF150RA35 | 17081108082 | 304 S.S. | 202.5 | 69.5 | 76.2 | 38.1 | |
| CF150RA63 | 17081108132 | 304 S.S. | 202.5 | 113.6 | 76.2 | 63.5 | |
| CF150RA100 | 17081108152 | 304 S.S. | 202.5 | 151.6 | 76.2 | 101.6 |
■ 零件號(Parts No.)加“ K”表示噴砂表面
■ 零件號(Parts No.)加“ L”表示拋光表面
