KF法蘭無波紋管(歐規)
手動式真空角閥
| select | ||||

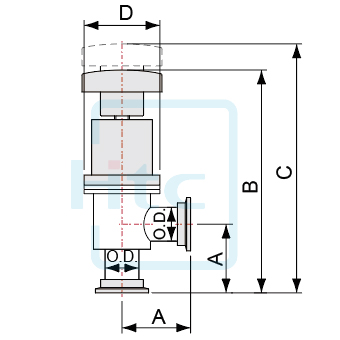

| Model No. | AV-KF16-M-E | AV-KF25-M-E | AV-KF40-M-E | AV-KF50-M-E |
| Parts No. | 310109010010 | 310111010010 | 310113010010 | 310114010010 |
| A | 40 | 50 | 65 | 70 |
| B | 152.9 | 159.6 | 194.5 | 232.7 |
| C | 168.7 | 175.4 | 227 | 273.1 |
| D | 56.8 | 56.8 | 75.8 | 88.4 |
| O.D. | 19.05 | 25.4 | 38.1 | 50.8 |
| Select | Model No. | Parts No. | A | B | C | D | O.D. |
| AV-KF16-M-E | 310109010010 | 40 | 152.9 | 168.7 | 56.8 | 19.05 | |
| AV-KF25-M-E | 310111010010 | 50 | 159.6 | 175.4 | 56.8 | 25.4 | |
| AV-KF40-M-E | 310113010010 | 65 | 194.5 | 227 | 75.8 | 38.1 | |
| AV-KF50-M-E | 310114010010 | 70 | 232.7 | 273.1 | 88.4 | 50.8 |
