氣動鐘擺閥(單動)

氣動式鐘擺閥(單動)

同類型產品

氣動鐘擺閥(單動)

氣動鐘擺閥(單動)

氣動鐘擺閥(單動)

完整詳細規格

select
Model No.		PVSSV-A-ISO200-P/24VDC	PVSSV-A-ISO250-P/24VDC	PVSSV-A-ISO320-P/24VDC	PVSSV-A-ISO400-P/24VDC
Parts No.		GP113K214CB	GP114K214CB	GP115K214CB	GP117K214CB
A		88	100	120	128
B		170.75	185.5	205.5	230.5
C		72	80	96	96
D		16	20	24	32
E		510	628	752	915
F		360	453	538	655
G		207.5	246	276	320
H		159.5	200	257	310
I		367	446	533	630
W		R152	R188	R230	R285
Bolt Size*No		M10*12	M10*12	M12*12	M16*12
Bolt P.C.D.		260	310	395	480
Bonnet seal		Viton	Viton	Viton	Viton
Flange O.D.		300	350	428	520
Port Dia.		200	261	318	400
Thread Depth		15	15	18	15

Select	Model No.	Parts No.	A	B	C	D	E	F	G	H	I	W	Bolt Size*No	Bolt P.C.D.	Bonnet seal	Flange O.D.	Port Dia.	Thread Depth
	PVSSV-A-ISO200-P/24VDC	GP113K214CB	88	170.75	72	16	510	360	207.5	159.5	367	R152	M10*12	260	Viton	300	200	15
	PVSSV-A-ISO250-P/24VDC	GP114K214CB	100	185.5	80	20	628	453	246	200	446	R188	M10*12	310	Viton	350	261	15
	PVSSV-A-ISO320-P/24VDC	GP115K214CB	120	205.5	96	24	752	538	276	257	533	R230	M12*12	395	Viton	428	318	18
	PVSSV-A-ISO400-P/24VDC	GP117K214CB	128	230.5	96	32	915	655	320	310	630	R285	M16*12	480	Viton	520	400	15

* Unit:mm

SolidWorks 2D & 3D 產品圖稿

Model No.	PVSSV-A-ISO200-P/24VDC	PVSSV-A-ISO250-P/24VDC	PVSSV-A-ISO320-P/24VDC	PVSSV-A-ISO400-P/24VDC
Parts No.	GP113K214CB	GP114K214CB	GP115K214CB	GP117K214CB
Download Type	DWG \| STEP	DWG \| STEP	DWG \| STEP	DWG \| STEP

注意: 請按【滑鼠右鍵】選擇【另存新檔】或【另存連結為】, 需稍等一下即出現存檔視窗。

氣動鐘擺閥(單動)

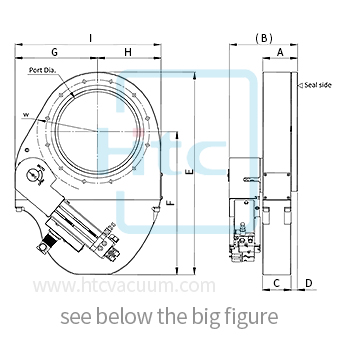

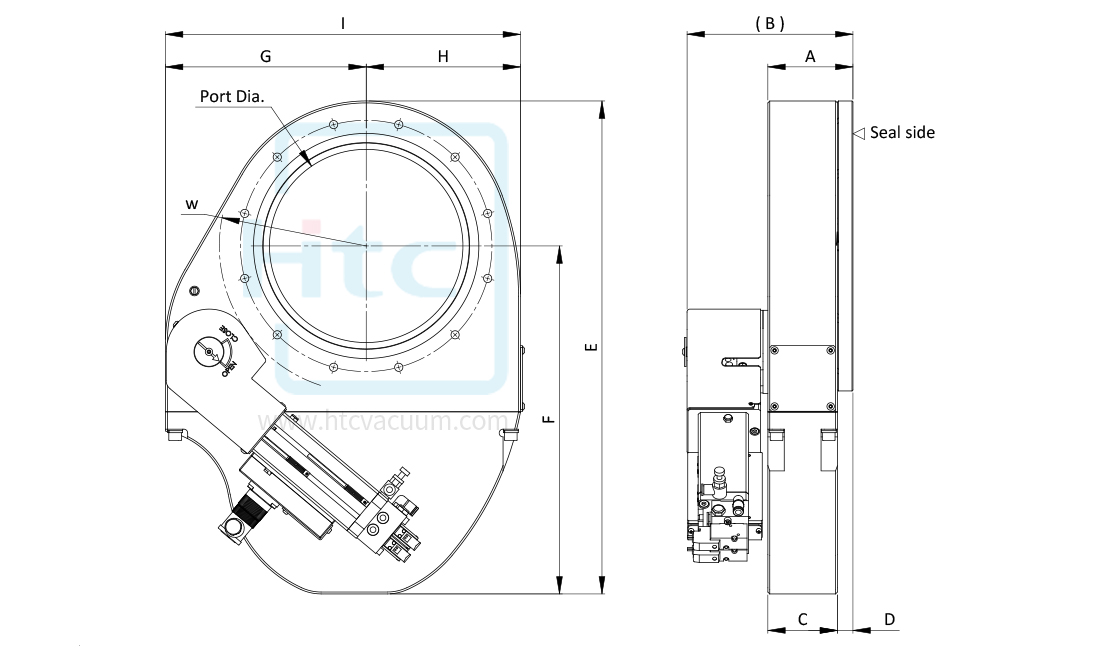

Pneumatic Pendulum Valve Drawing

[注意] 建議使用24AWG電線
