ISO-F TYPE 氣動蝶閥
Htc 氣動蝶閥
| select | ||||

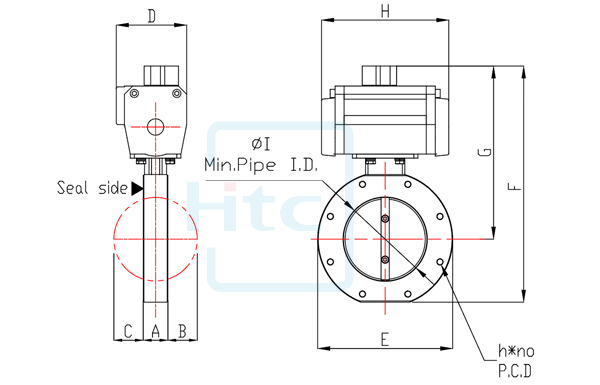

| Model No. | ISO63BFVP2 | ISO100BFVP2 | ISO160BFVP2 | ISO200BFVP2 |
| Parts No. | 3202151113213 | 3202181113213 | 3202201113213 | 3202211113213 |
| A | 30 | 30 | 40 | 50 |
| B | 21 | 36 | 55.5 | 76 |
| C | 15 | 36 | 55.5 | 76 |
| D | 75 | 86 | 86 | 104 |
| E | 130 | 165 | 225 | 285 |
| F | 237 | 288.5 | 351.5 | 438 |
| G | 177.1 | 211.5 | 241.5 | 299 |
| H | 138 | 155.5 | 155.5 | 230 |
| h*No | M8*4 | M8*8 | M10*8 | M10*12 |
| I | 63 | 100 | 150 | 200 |
| P.C.D. | 110 | 145 | 200 | 260 |
| Thread Depth | 12 | 12 | 15 | 15 |
| Select | Model No. | Parts No. | A | B | C | D | E | F | G | H | h*No | I | P.C.D. | Thread Depth |
| ISO63BFVP2 | 3202151113213 | 30 | 21 | 15 | 75 | 130 | 237 | 177.1 | 138 | M8*4 | 63 | 110 | 12 | |
| ISO100BFVP2 | 3202181113213 | 30 | 36 | 36 | 86 | 165 | 288.5 | 211.5 | 155.5 | M8*8 | 100 | 145 | 12 | |
| ISO160BFVP2 | 3202201113213 | 40 | 55.5 | 55.5 | 86 | 225 | 351.5 | 241.5 | 155.5 | M10*8 | 150 | 200 | 15 | |
| ISO200BFVP2 | 3202211113213 | 50 | 76 | 76 | 104 | 285 | 438 | 299 | 230 | M10*12 | 200 | 260 | 15 |
SolidWorks 2D & 3D 產品圖稿
| Model No. | ISO63BFVP2 | ISO100BFVP2 | ISO160BFVP2 | ISO200BFVP2 |
| Parts No. | 3202151113213 | 3202181113213 | 3202201113213 | 3202211113213 |
| Download Type | DWG | STEP | DWG | STEP | DWG | STEP | DWG | STEP |
規格
- 閥尺寸：2-1/2"(63.5mm) to 8"(203.2mm)
- 法蘭：ISO-F > ISO63, ISO100, ISO160, ISO200
- 壓力範圍： 10-8mbar to 2bar
- 測漏率: 1x10-9mbar.l/sec
- 本體材質：304S.S.
- 密封材質：Viton®
- 溫度：Actuator ≦ 60°C / Body ≦ 120°C
- 運轉壽命*：ISO63 - ISO160 >>> 1,500,000 | ISO200 >>> 1,000,000
(O型圈板是氣動蝶閥中的消耗材料，迴圈壽命ISO63-ISO160為25萬次;ISO200為20萬次) - 選配：Limit switch , solenoid
- 壓縮空氣壓力 : 4 ~ 6 kg/cm2
- 空氣壓縮連接頭 : ISO63-2 x 1/8”NPT ; ISO100~200-2 x 1/4”NPT (產品不附氣壓接頭)
