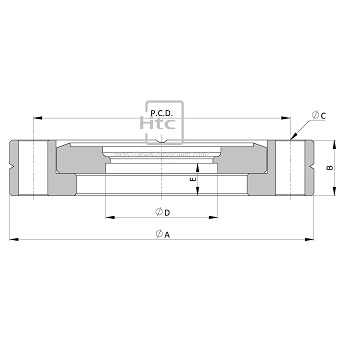

CF封蓋法蘭(可旋轉)
CF法蘭
.jpg)
-TAP.jpg)
.jpg)
-TAP.jpg)
.jpg)
-TAP.jpg)
| select | ||||||||||||||||||||||||||
| Model No. | CR35B25 | CR35B38 | CR35B42 | CR63B51 | CR63B63 | CR100B102 | CR150B153 | CR200B204 | CR250B255 | CR275B255 | CR300B305-14" | CR300B305 | CR350B356 | CF35B25-316 | CR35B38-316 | CR35B42-316 | CR63B51-316 | CR63B63-316 | CR100B102-316 | CR150B153-316 | CR200B204-316 | CR250B255-316 | CR275B255-316 | CR300B305-14"-316 | CR300B305-316 | CR350B356-316 |
| Parts No. | 154704113 | 154704133 | 154704AG3 | 154707143 | 154707153 | 154709183 | 154711203 | 154713213 | 1547X1223 | 154714223 | 154715233 | 1547X2233 | 154717243 | 154704115 | 154704135 | 154704AG5 | 154707145 | 154707155 | 154709185 | 154711205 | 154713215 | 1547X1225 | 154714225 | 154715235 | 1547X2235 | 154717245 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. | 316 S.S. |
| A | 69.5 | 69.5 | 69.5 | 113.6 | 113.6 | 151.6 | 202.5 | 253.2 | 304 | 336.5 | 355.6 | 368.3 | 419.1 | 69.5 | 69.5 | 69.5 | 113.6 | 113.6 | 151.6 | 202.5 | 253.2 | 304 | 336.5 | 355.6 | 368.3 | 419.1 |
| B | 12.7 | 12.7 | 12.7 | 19 | 19 | 21.5 | 24 | 24.7 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 12.7 | 12.7 | 12.7 | 19 | 19 | 21.5 | 24 | 24.7 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 |
| C*No. | 6.7*6 | 6.7*6 | 6.7*6 | 8.4*8 | 8.4*8 | 8.4*16 | 8.4*20 | 8.4*24 | 8.4*32 | 10.3*30 | 10.3*30 | 10.3*32 | 10.3*36 | 6.7*6 | 6.7*6 | 6.7*6 | 8.4*8 | 8.4*8 | 8.4*16 | 8.4*20 | 8.4*24 | 8.4*32 | 10.3*30 | 10.3*30 | 10.3*32 | 10.3*36 |
| D | 25.6 | 38.3 | 42.9 | 51.1 | 63.7 | 102.2 | 153.1 | 203.7 | 255 | 255 | 305.3 | 305.3 | 356.1 | 25.6 | 38.3 | 42.9 | 51.1 | 63.7 | 102.2 | 153.1 | 203.7 | 255 | 255 | 305.3 | 305.3 | 356.1 |
| E | 7.4 | 7.4 | 7.4 | 9.5 | 9.5 | 10.4 | 11.3 | 12 | 15.8 | 15.8 | 15.8 | 15.8 | 15.8 | 7.4 | 7.4 | 7.4 | 9.5 | 9.5 | 10.4 | 11.3 | 12 | 15.8 | 15.8 | 15.8 | 15.8 | 15.8 |
| Inch spec. | 2-3/4" | 2-3/4" | 2-3/4" | 4-1/2" | 4-1/2" | 6" | 8" | 10" | 12" | 13-1/4" | 14" | 14-1/2" | 16-1/2" | 2-3/4" | 2-3/4" | 2-3/4" | 4-1/2" | 4-1/2" | 6" | 8" | 10" | 12" | 13-1/4" | 14" | 14-1/2" | 16-1/2" |
| P.C.D. | 58.7 | 58.7 | 58.7 | 92.1 | 92.1 | 130.3 | 181 | 231.8 | 284 | 306.3 | 325.5 | 338.1 | 388.9 | 58.7 | 58.7 | 58.7 | 92.1 | 92.1 | 130.3 | 181 | 231.8 | 284 | 306.3 | 325.5 | 338.1 | 388.9 |
| Select | Model No. | Parts No. | Material | A | B | C*No. | D | E | Inch spec. | P.C.D. |
| CR35B25 | 154704113 | 304 S.S. | 69.5 | 12.7 | 6.7*6 | 25.6 | 7.4 | 2-3/4" | 58.7 | |
| CR35B38 | 154704133 | 304 S.S. | 69.5 | 12.7 | 6.7*6 | 38.3 | 7.4 | 2-3/4" | 58.7 | |
| CR35B42 | 154704AG3 | 304 S.S. | 69.5 | 12.7 | 6.7*6 | 42.9 | 7.4 | 2-3/4" | 58.7 | |
| CR63B51 | 154707143 | 304 S.S. | 113.6 | 19 | 8.4*8 | 51.1 | 9.5 | 4-1/2" | 92.1 | |
| CR63B63 | 154707153 | 304 S.S. | 113.6 | 19 | 8.4*8 | 63.7 | 9.5 | 4-1/2" | 92.1 | |
| CR100B102 | 154709183 | 304 S.S. | 151.6 | 21.5 | 8.4*16 | 102.2 | 10.4 | 6" | 130.3 | |
| CR150B153 | 154711203 | 304 S.S. | 202.5 | 24 | 8.4*20 | 153.1 | 11.3 | 8" | 181 | |
| CR200B204 | 154713213 | 304 S.S. | 253.2 | 24.7 | 8.4*24 | 203.7 | 12 | 10" | 231.8 | |
| CR250B255 | 1547X1223 | 304 S.S. | 304 | 28.5 | 8.4*32 | 255 | 15.8 | 12" | 284 | |
| CR275B255 | 154714223 | 304 S.S. | 336.5 | 28.5 | 10.3*30 | 255 | 15.8 | 13-1/4" | 306.3 | |
| CR300B305-14" | 154715233 | 304 S.S. | 355.6 | 28.5 | 10.3*30 | 305.3 | 15.8 | 14" | 325.5 | |
| CR300B305 | 1547X2233 | 304 S.S. | 368.3 | 28.5 | 10.3*32 | 305.3 | 15.8 | 14-1/2" | 338.1 | |
| CR350B356 | 154717243 | 304 S.S. | 419.1 | 28.5 | 10.3*36 | 356.1 | 15.8 | 16-1/2" | 388.9 | |
| CF35B25-316 | 154704115 | 316 S.S. | 69.5 | 12.7 | 6.7*6 | 25.6 | 7.4 | 2-3/4" | 58.7 | |
| CR35B38-316 | 154704135 | 316 S.S. | 69.5 | 12.7 | 6.7*6 | 38.3 | 7.4 | 2-3/4" | 58.7 | |
| CR35B42-316 | 154704AG5 | 316 S.S. | 69.5 | 12.7 | 6.7*6 | 42.9 | 7.4 | 2-3/4" | 58.7 | |
| CR63B51-316 | 154707145 | 316 S.S. | 113.6 | 19 | 8.4*8 | 51.1 | 9.5 | 4-1/2" | 92.1 | |
| CR63B63-316 | 154707155 | 316 S.S. | 113.6 | 19 | 8.4*8 | 63.7 | 9.5 | 4-1/2" | 92.1 | |
| CR100B102-316 | 154709185 | 316 S.S. | 151.6 | 21.5 | 8.4*16 | 102.2 | 10.4 | 6" | 130.3 | |
| CR150B153-316 | 154711205 | 316 S.S. | 202.5 | 24 | 8.4*20 | 153.1 | 11.3 | 8" | 181 | |
| CR200B204-316 | 154713215 | 316 S.S. | 253.2 | 24.7 | 8.4*24 | 203.7 | 12 | 10" | 231.8 | |
| CR250B255-316 | 1547X1225 | 316 S.S. | 304 | 28.5 | 8.4*32 | 255 | 15.8 | 12" | 284 | |
| CR275B255-316 | 154714225 | 316 S.S. | 336.5 | 28.5 | 10.3*30 | 255 | 15.8 | 13-1/4" | 306.3 | |
| CR300B305-14"-316 | 154715235 | 316 S.S. | 355.6 | 28.5 | 10.3*30 | 305.3 | 15.8 | 14" | 325.5 | |
| CR300B305-316 | 1547X2235 | 316 S.S. | 368.3 | 28.5 | 10.3*32 | 305.3 | 15.8 | 14-1/2" | 338.1 | |
| CR350B356-316 | 154717245 | 316 S.S. | 419.1 | 28.5 | 10.3*36 | 356.1 | 15.8 | 16-1/2" | 388.9 |
