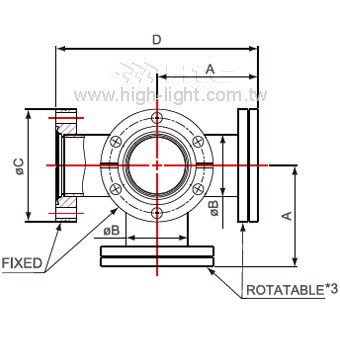

五通管-CF法蘭接口-3法蘭可旋轉
五通系列
| select | |||||
| Model No. | CR16FXA | CR35FXA | CR63FXA | CR100FXA | CR150FXA |
| Parts No. | 16266028024 | 16266048044 | 16266078074 | 16266098094 | 16266118114 |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |
| A | 47.2 | 62.5 | 85.7 | 109.5 | 139.7 |
| B | 19.05 | 38.1 | 63.5 | 101.6 | 152.4 |
| C | 33.8 | 69.5 | 113.6 | 151.6 | 202.5 |
| D | 94.4 | 125 | 171.4 | 219 | 279.4 |
| Select | Model No. | Parts No. | Material | A | B | C | D |
| CR16FXA | 16266028024 | 304 S.S. | 47.2 | 19.05 | 33.8 | 94.4 | |
| CR35FXA | 16266048044 | 304 S.S. | 62.5 | 38.1 | 69.5 | 125 | |
| CR63FXA | 16266078074 | 304 S.S. | 85.7 | 63.5 | 113.6 | 171.4 | |
| CR100FXA | 16266098094 | 304 S.S. | 109.5 | 101.6 | 151.6 | 219 | |
| CR150FXA | 16266118114 | 304 S.S. | 139.7 | 152.4 | 202.5 | 279.4 |
■ 零件號(Parts No.)加“ K”表示噴砂表面
■ 零件號(Parts No.)加“ L”表示拋光表面
