CF法蘭連結壓縮波紋管-單邊法蘭可旋轉
壓縮波紋管
| select | ||||
| Model No. | CF16FXC150R | CF35FXC180R | CF63FXC210R | CF100FXC270R |
| Parts No. | 40310430150FH | 40310450180FH | 40310470210FH | 40310490270FH |
| Material | 304 S.S. | 304 S.S. | 304 S.S. | 304 S.S. |

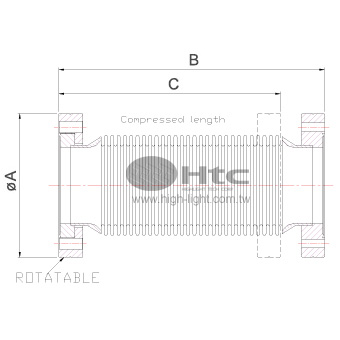

| A | 33.8 | 69.5 | 113.6 | 151.6 |
| B | 150 | 180 | 210 | 270 |
| C | 130 | 160 | 190 | 250 |
| Select | Model No. | Parts No. | Material | A | B | C |
| CF16FXC150R | 40310430150FH | 304 S.S. | 33.8 | 150 | 130 | |
| CF35FXC180R | 40310450180FH | 304 S.S. | 69.5 | 180 | 160 | |
| CF63FXC210R | 40310470210FH | 304 S.S. | 113.6 | 210 | 190 | |
| CF100FXC270R | 40310490270FH | 304 S.S. | 151.6 | 270 | 250 |
